Cover for the 9" Dual-Purpose In-Wall Enclosure
9" Dual-Purpose In-Wall Enclosure with Wireless Devices Installed
Image of the On-Q 9-inch Dual-Purpose In-Wall Enclosure and packaging. The text shown is the product SKU (ENP900-NA).

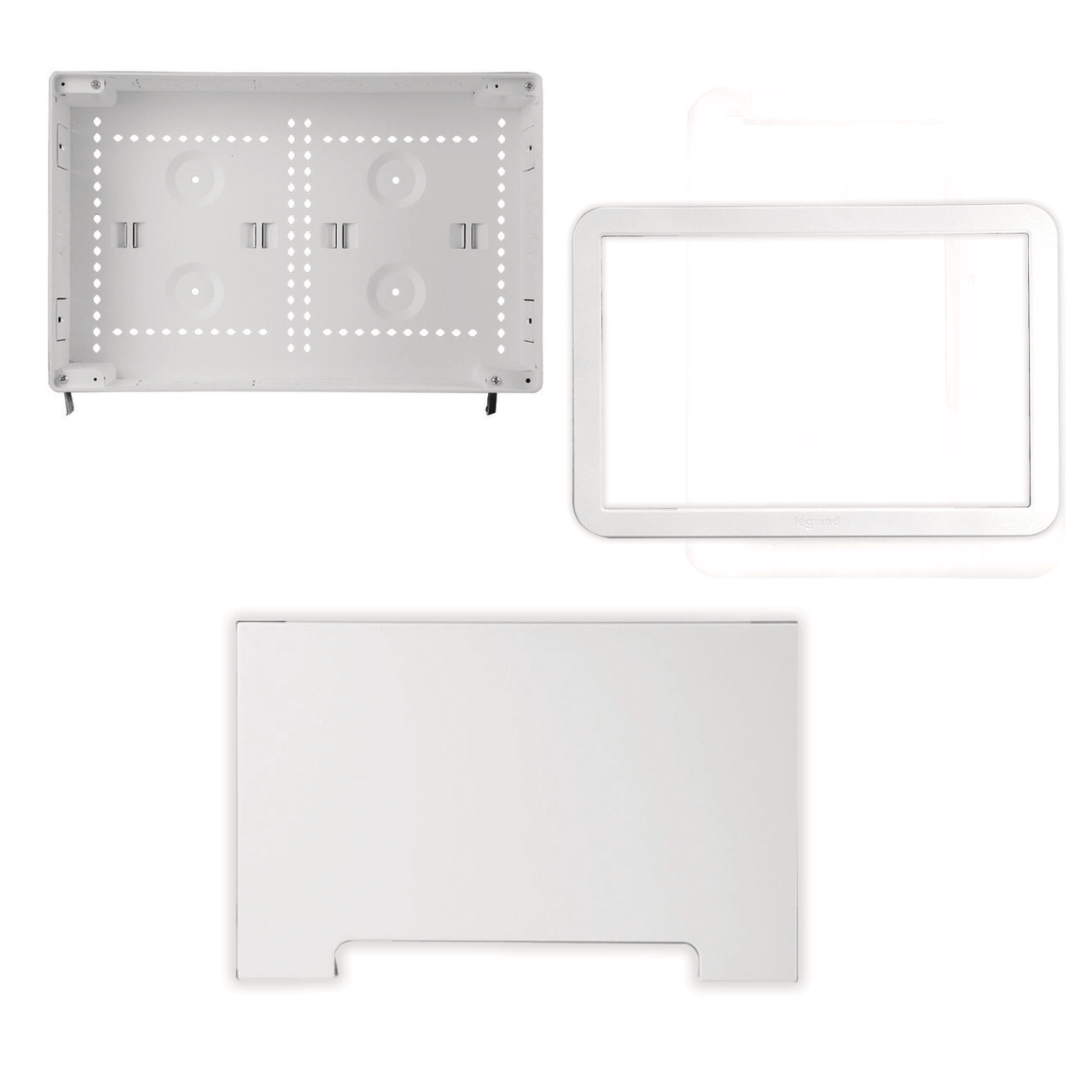

Image of a disassembled 9-inch Dual-Purpose In-Wall Enclosure. The text in black lists out what's included with the enclosure.
Image of an electrical outlet that is pointing to the 9-inch Dual-Purpose In-Wall Enclosure outlet knockout feature. The text in black reads " WORKS WITH METAL OLD WORK STANDARD SWITCH/OUTLET BOX".
Image showing the installation of an On-Q 9-inch Dual-Purpose In-Wall Enclosure. The image is broken down into 4 different photos that show different installation methods. The text in black reads " New Construction OR Retrofit Installation".
Four grid image showing the the built in cable management and device loops feature. The first image shows a screw driver pointing towards the loops. The second image shows a hook and loop fastener. The third image shows a hook and loop fastener being thre
Image showing an installed 9-inch Dual-Purpose In-Wall Enclosure. The enclosure is connected to a TV mounting bracket. The text in black reads " STORE DEVICES IN_WALL FOR A FLUSH, SLEEK INSTALL".
Image showing the installation of an On-Q 9-Inch Dual-Purpose In-Wall Enclosure. The enclosure is fitted with electronic modules and surrounded by a TV mounting bracket. There is a transparent image of a TV superimposed on top of the enclosure and mountin
Image showing an installed 9-inch Dual-Purpose In-Wall Enclosure. The enclosure is connected to a TV mounting bracket. The text in black reads " WORKS WITH ANY TV MOUNT INCLUDING SANUS PREMIUM MOUNTS".
Image showing the various features of the On-Q 9-inch Dual-Purpose In-Wall Enclosure. the features shown include: Outlet Knockouts (top & bottom), Cable Knockouts, and Retrofit Drywall Clips. The image also shows the outlets this enclosure supports.

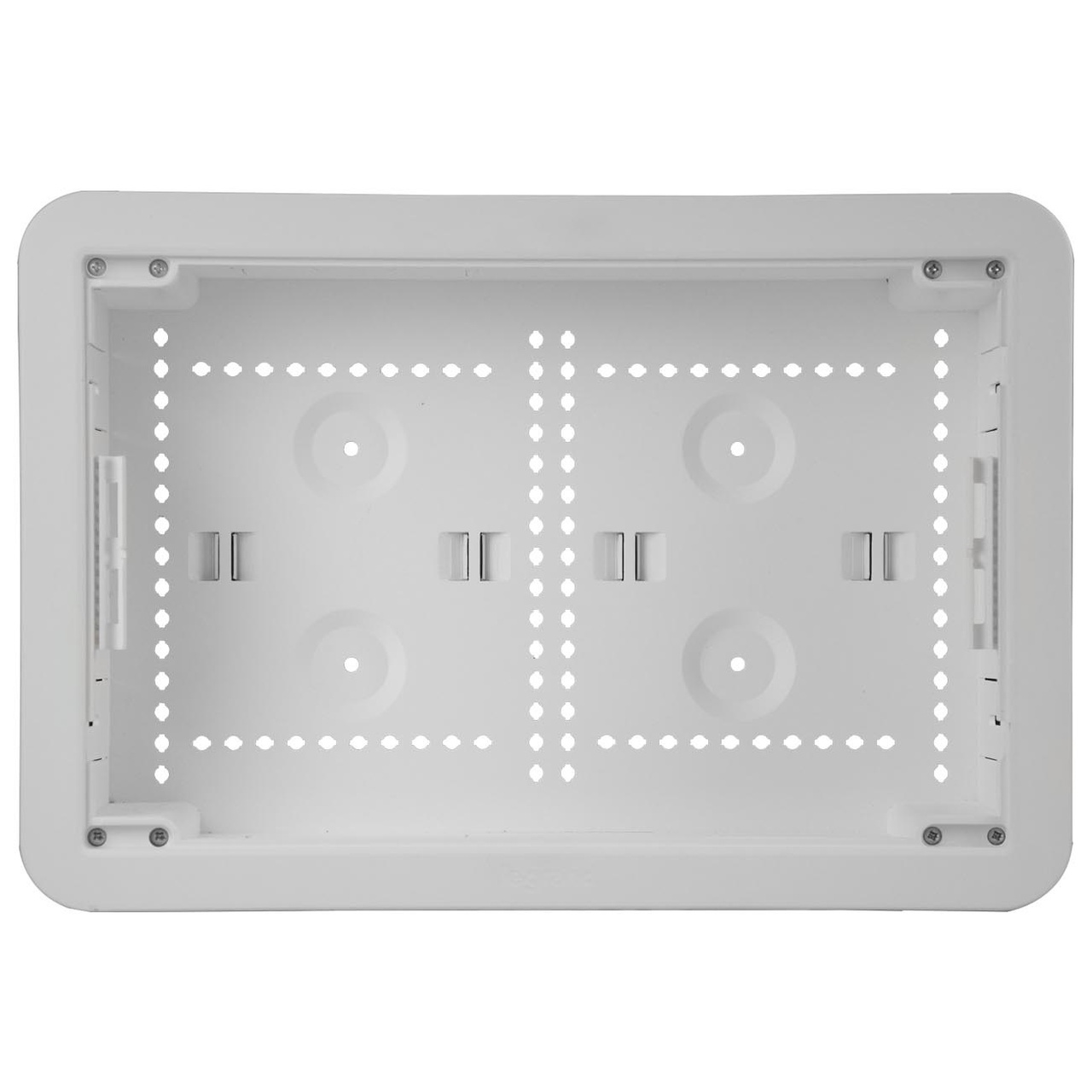

9-inch Dual-Purpose In-Wall Enclosure

ENP0900NA On-Q
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 17ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

$39.99 USD

The 9-inch Dual-Purpose In-Wall Enclosure is engineered to provide storage of structured wiring and AV components. The ENP0900NA is constructed of Wi-Fi transparent material to manage wireless components and AV devices at point-of-use locations, like directly behind a TV or other media centers. It can also be used for structured wiring purposes, such as networking equipment, access points, switches and more. The ENP0900NA is compatible with devices like Apple TV, Roku, Amazon Fire TV, small network switches and more. Includes cover, trim ring and drywall clips, allowing for both new construction and retrofit installations.

  • Free shipping on orders over $49 & free returns

Quantity

In Stock

Add To Cart Button Ready

Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Designed for in-wall storage and distribution of structured wiring and AV components
  • Can be placed behind most TV wall-mounts including SANUS premium TV mounts
  • Compatible with devices like Apple TV, Roku, Amazon Fire TV, network switches, 3rd party structured wiring components and more
  • Trim ring conceals drywall cut out for clean finish and smooth transition to wall surface
  • Tool-free cover is low profile and designed to snap into place providing a ''flush'' appearance to wall surface
  • Knockout configurations support conduit and in-wall wired connections, while a cable pass through on cover allows for outside cable connections
  • Features (2) AC knockouts to accommodate a single gang junction box to power devices in enclosure
  • Universal mounting grid maximizes compatibility with 3rd party devices without additional mounting brackets
  • Features drywall clips to allow both retrofit and new construction installations
  • UL Listed and constructed of Wi-Fi transparent ABS plastic to ensure uninterrupted performance of wireless devices
  • Proudly made in the USA
Specifications

Specifications

General Info
Product Line On-Q
Color White
Finish Matte
UPC Number 804428434542
Country Of Origin United States
Package Quantity 1
Application Sector Residential/Commercial
Standard RoHS, UL, cULus
Type Enclosure
Dimensions
Product Width US 14.37 in
Product Depth US 3.88 in
Product Height US 9.33 in
Additional Information
RoHS Conformant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Technical Information
Compatibility Paintable with Rust-Oleum paint for plastic or equivalent
Thickness 0.1 in
Enclosure Type Dual Purpose
Frame Injection-molded plastic
Operating Temperature 32°-122°F
Mounting Consult the Factory for Mounting Recommendations
Environmental Conditions 0 to 93% (relative humidity, non-condensing)
Resources
Related Products
Reviews

Reviews

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
Questions & Answers

Questions & Answers

is the surface paintable?

Asked by: Sunny803
Yes, this product cover and trim frame is paintable. A Plastic primer would be best to use before painting.
Answered by: Wiremold Tech Support
Date published: 2024-03-18

Can it be installed on a covered patio outside?

Asked by: Bob
This product is rated for indoor, interior walls only.
Answered by: Wiremold Tech Support
Date published: 2023-11-01

I don't like the gap in the door. Is there another door that has a solid front? Perhaps one that opens on a hinge?

Asked by: Will V.
We're sorry, there is not. The Gap is designed to allow cabling from inside the box to get out to the display it is mounted behind.
Answered by: Wiremold Tech Support
Date published: 2023-09-19

Can this be mounted sideways? If I have a 10" stud bay instead of standard 16" on-center studs. The 9.375" height would fit if I turn the box 90º. Is there any reason mounting it rotated 90º on its side would pose any problems?

Asked by: JLP
The unit can be mounted in either orientation. Mounting it vertically as you suggest will require the unit to be attached using the drywall mounting tabs. There is no means to drive screws into the adjacent studs when turned vertical.
Answered by: Wiremold Tech Support
Date published: 2023-05-15

Hi, I'm from Germany. Where can I buy the ENP0900NA In-Wall Enclosure?

Asked by: atticus_finch
This enclosure is only distributed in North America, we are sorry.
Answered by: Wiremold Tech Support
Date published: 2022-08-29

I would like to have the ability to easily pass low voltage cables (HDMI, speaker cables, etc) from this box to a smaller box below, the wall will have insulation. Is there a kit/recommended way to attach conduit for this purpose?

Asked by: Anonymous
