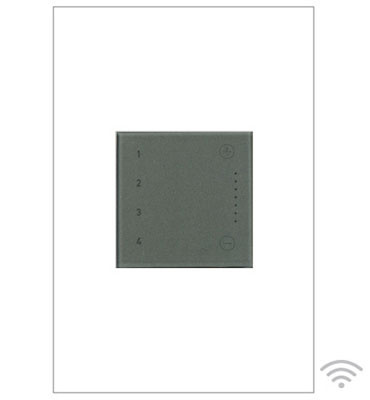

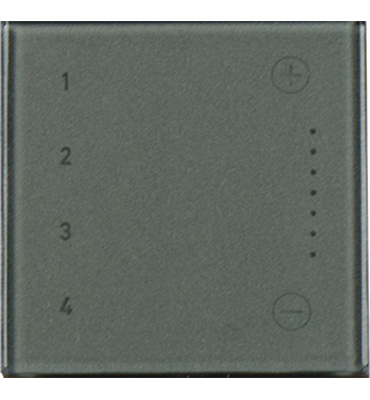

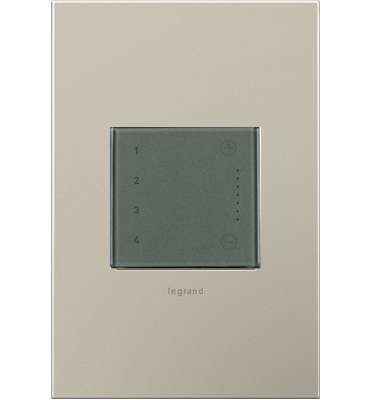

Discontinued - adorne® Touch™ Wi-Fi Ready Scene Controller, Magnesium
ADTHRIWHCM1
adorne Collection
Bazaarvoice SAP Hybris Integration Version 2.8.1
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Installs in 25 minutes or less.
- Compatible with iOS and Android devices for app-based control, simply download the free Legrand Lighting Control app.
- Also compatible with Amazon Alexa and Google Home, and even integrates into advanced home automation systems.
- Part of the adorne Wi-Fi Lighting Control System, this device requires the adorne Hub to operate.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a stunning, screwless adorne® Wall Plate, not included. Available in a range of contemporary colors and finishes. Coordinate with other designer switches & outlets.
Specifications
General Info
Product Line | Pass & Seymour | ||
Color | Magnesium | ||
Country Of Origin | China | ||
Features | Indicator Lights, Smart Lighting | ||
Switch Type | Touch | ||
Number of Switches | 1 | ||
Works With | Amazon Alexa, Control4, Elan, Google Assistant, Radio Frequency, RTI, URC | ||
Application Sector | Residential | ||
Standard | UL, FCC, cULus, RoHS | ||
Warranty Type | 1-Year Limited Warranty |
Additional Information
RoHS Conformant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Listing Agencies / 3rd Party Agencies
cULus Listed | Yes | ||
FCC Compliant | Yes |
Technical Information
Frequency Rating | 900 Hz | ||
Protocol | Top Dog Radio | ||
Bulb Compatibility | CFL, Fluorescent, Halogen, HID, Incandescent, LED, Universal, Xenon | ||
Number of Poles | Multi-Location | ||
Mounting Type | Box | ||
Voltage | 120.0 V | ||
Connection Type | Internal Pressure Plates |
Resources
Guide Form Specifications
Instruction Sheet
Cutsheet
Sell Sheet
Supporting Document
User Guides
Installation Instructions
Brochure
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
What is the model # for the master switch required to use the 4 scene switch on the same circuit?
The ASTH155RMW1(master switch) or ADTH700RMTUW1(master dimmer) can be programmed to the scene controller. You would also need the LC7001 hub to be able to program the controller using the Lighting Control App.
Date published: 2022-06-21
Does this switch need a Master Switch to operate in different locations?
Yes, this is a scene controller that has to have masters(1-99) installed to operate. The scenes would be setup through the Lighting Control app and the LC7001 hub is required for connection to the app.
Date published: 2022-06-08
Does this allow 4 scenes for each room? If I install a scene controller in another room will I be able to control 4 more scenes or only a total of 4 scenes for the entire house can be controlled no matter how many controllers are installed in the home?
You can have multiple scene controllers in the house or in a room. You can assign any scenes you want to any of the controllers. They are fully assignable and one does not affect the other, except if you assign the same scene to multiple controllers then the state of the scene will be reflected on each controller that has that scene.
Date published: 2022-01-04
Does this TOUCH™ WI-FI READY SCENE CONTROLLER act as a dimmer for a specific light as well a the scene controller? Or is its only purpose as a scene controller? I ask because it has dimmer-looking controls on the right.
The WI-FI READY SCENE CONTROLLER can act as a dimmer for the scene. You can dim the lights associated with a certain scene but it wont control one individual light unless the one light is the only one on the scene.
Date published: 2020-04-14
