Extra Heavy-Duty Spec. Grade & Security Switches

PS372010KL Pass & Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 46ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

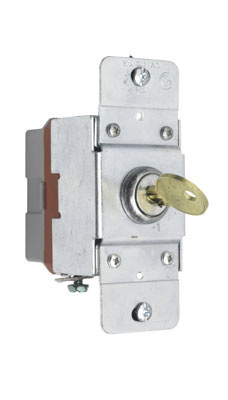

Canadian 1pole Key Lock Back & Side Wire 20amp 347volt
Application Sector Residential/Commercial

Features

  • Back and side wired. Accepts #14 - #10 AWG. Operated by cam lock for maximum security in critical areas. Recommended for tamper-proof installation in schools, public housing, trailer parks, freight yards, etc. Uses same key as Cat.# 4600 cast enclosure. Key can be removed in both positions.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

General Info
UPC Number 785007196429
Countries Of Origin Mexico
Product Line Pass & Seymour
Application Sector Residential/Commercial
Standard UL 20
Technical Information
Number of Poles Double Pole
Voltage 347 V
Actuator Toggle
Contact Rating 20amp, 347vac
Action dpdt
