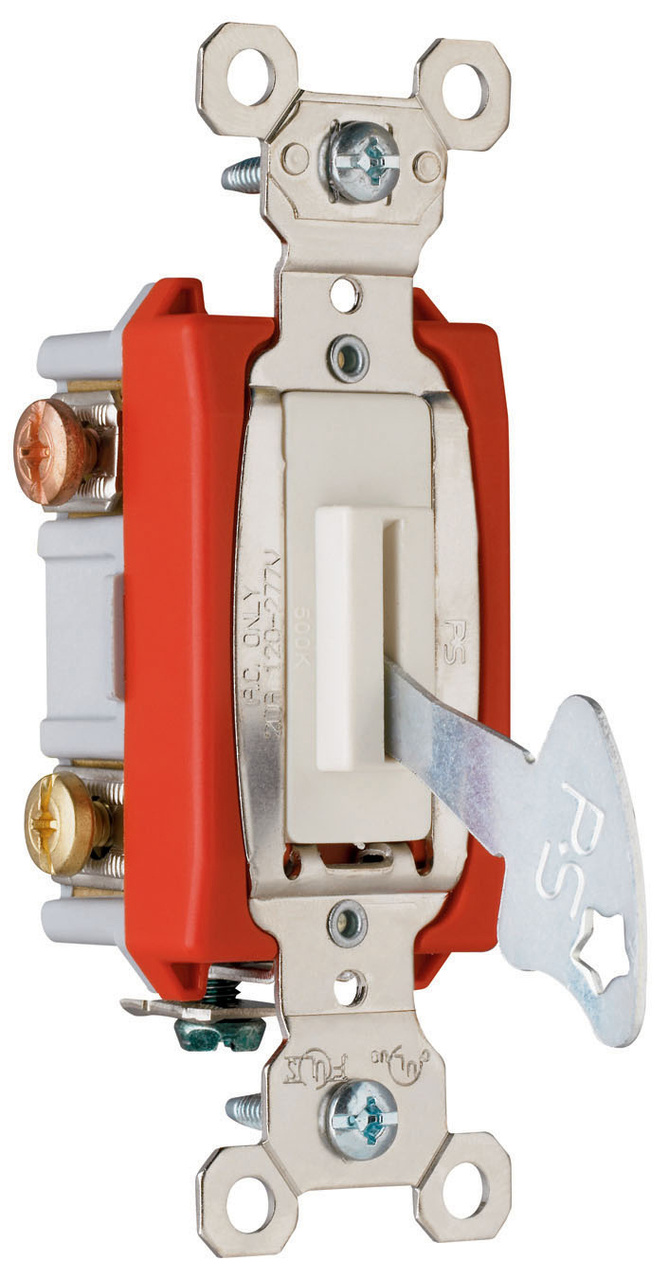

Industrial Extra Heavy-Duty Specification Grade Lock Switch Back & Side Wire, Light Almond
PS20AC3LAL
Pass & Seymour
3way Lock Switch, Back & Side Wire, 20amp 120/277volt, Ivory (Key can be removed in both positions)
In Stock
Added to Your Shopping Cart
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?
Features
- External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
- Cam controls fast ''make'' and positive ''break'' to minimize arcing.
- Heavy-duty bumper pads for quiet operation.
- High strength thermoplastic polycarbonate toggle.
- Back body made of glass-reinforced nylon.
- Locking support provides resistance to face and back body separation.
- Oversized silver alloy contacts for long life and better heat dissipation.
- Grounding terminal is standard.
- Shallow design for ease of installation.
- Strap nickel-plated steel with integral ground.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Specifications
General Info
| UPC Number | 785007196498 | ||
| Countries Of Origin | Mexico | ||
| Product Line | Pass & Seymour | ||
| Application Sector | Industrial | ||
| Standard | UL 20 |
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes | ||
| cULus ListingNumber | 140597 |
Technical Information
| Wattage | 3 W | ||
| Number of Poles | 3-Way | ||
| Voltage | 120 V | ||
| Closed Contact Resistance | Toggle | ||
| Contact Rating | 20amp, 120/277vac |
