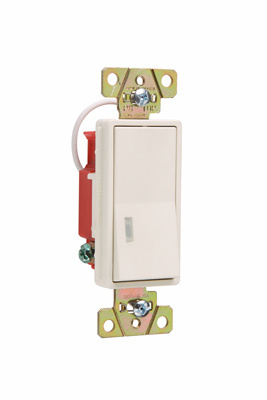

Pilot Lighted Decorator Switch, Light Almond

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 16ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Single-Pole, Single Pilot Light, Side and Back Wire, Decorator Switch, 20A, 120 volts
Color Light Almond
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Features

  • Impact-resistant polycarb back body and frame.
  • Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
  • Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
  • Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
  • Terminals made of high conductivity brass and serrated for maximum wire gripping.
  • Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
  • Integral auto-ground clip for positive ground to metal boxes.
  • Tri-drive ground, terminal, and mounting screws.
  • All terminal screws backed out, ready-to-install.
  • For covering patents, see www.legrand.us/patents.

Specifications

General Info
Product Line Pass & Seymour
Country Of Origin Mexico
Application Sector Industrial
Standard UL 20
Listing Agencies / 3rd Party Agencies
CSA Listed Yes
cULus ListingNumber  140597
cULus Listed  Yes
CSA File Number  17446
Technical Information
Contact Rating 20amp, 120vac
Amperage 20 A
Wattage 1 W
Voltage 120 V

Reviews

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 4ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Questions & Answers

Can you provide a wiring diagram please (the one printed on the box is for a 3-way switch). Where does the pre-installed white wire connect to?

Asked by: Elmo
Hello Elmo, I'd be happy to send you a wiring diagram for the device. Please contact our Technical Support team at 844-957-3783 to provide your email address. Thank you!
Answered by: Wiremold Tech Support
Date published: 2024-02-12

Is pilot light on when light is on or light is on in off position or all the time ???

Asked by: Bill
The Pilot light device should be on when the connected load is on.
Answered by: Wiremold Tech Support
Date published: 2023-11-04

Hello Sir/madam, Im in Port St.Lucie FL. I would like to buy a few 2629W, 2625W, and 2626W. I dont believe I can buy these online from Legrand. Where can I purchase these switches? Along with a few lighted receptacles.

Asked by: Richard
You can purchase them from any Legrand Retailer/Distributor and you can find them in your area using the link below: https://www.legrand.us/where-to-buy/shop-local/ They can order them for you if they do not carry them in stock.
Answered by: Legrand Technical Support
Date published: 2022-01-21

Does this switch need a neutral wire connection for pilot to work?

Asked by: Bill
Yes, Pilot Lighted switches will require a Neutral wire.
Answered by: Legrand Technical Support
Date published: 2022-03-22
