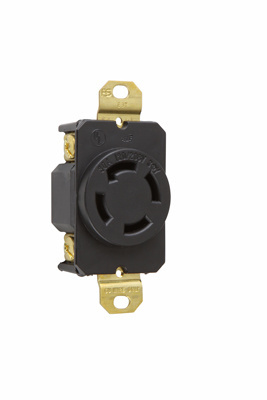

30 Amp Non-NEMA Single Receptacle

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 62ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Receptacle Single 30amp 120/208volt 3phase-y
Application Sector Commercial

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.

Specifications

General Info
UPC Number 785007343007
Countries Of Origin Mexico
Product Line Pass & Seymour
Application Sector Industrial
Standard UL498
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
cULus ListingNumber  140596
Technical Information
Number of Poles 4-Way
Voltage 3 V
Phase 3
Wire Size #14 - #10
Number of Wires 4
Environmental Conditions Consult the Factory
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 8ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

I am hooking up # 8 wire ,ground,red,white,and black ,ground goes on G,white on W,red andblack on hot ,Right

Asked by: fritz
The 3430 terminals are marked and should be wired as follows: G - Ground, W - Neutral, X - Hot, and Y - Hot
Answered by: Legrand Technical Support
Date published: 2019-10-30
