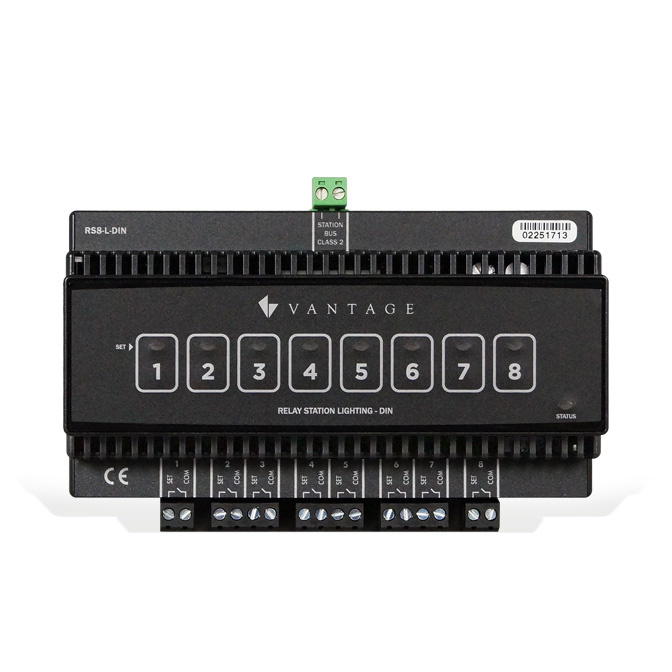

Straight-on shot of the RS8-L-DIN Lighting Relay Module (DIN)

Lighting Relay Module (DIN)

RS8-L-DIN Vantage
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 3ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

The DIN Lighting Relay Station is designed to control non-dimmable lighting and switchable loads and provides eight isolated latching relay outputs. The RS8-L-DIN accepts voltage from 0 to 277 Volts and up to 10 Amps at each load. The relays are single-pole, single throw, offering a set of eight latching contacts. This station may also be used as a low-Voltage relay station. Actuator buttons allow the connected relays to be manually toggled. Relays latch in place retaining its last state in case of a power interrupt.
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Details

Product Details

The DIN Lighting Relay Station is designed to control non-dimmable lighting and switchable loads and provides eight isolated latching relay outputs. The RS8-L-DIN accepts voltage from 0 to 277 Volts and up to 10 Amps at each load. The relays are single-pole, single throw, offering a set of eight latching contacts. This station may also be used as a low-Voltage relay station. Actuator buttons allow the connected relays to be manually toggled. Relays latch in place retaining its last state in case of a power interrupt.
  • All relays are rated for lighting type loads
  • Provides a single integration point for up to eight relay channels
  • Allows effortless control of devices such as lighting loads, draperies, pumps, garage doors, lifts, screens, pool covers, sprinklers, security systems, and much more
Specifications

Specifications

General Info
Product Type Relay
Application Sector Commercial, Residential
Product Line Vantage
Country Of Origin China
Installation Location Enclosure
Warranty Type 5-Year
UPC Number 804428050704
Dimensions
Product Height US 11.5 in
Product Length US 18.5 in
Product Width US 15.0 in
Product Weight US 22.42 lb
Technical Information
Seismic Tested No
Compatibility InFusion
Indoor/Outdoor Indoor
Mounting Type DIN Rail
Operating Temperature 0°-40°C, 32°-104°F
Operating Temperature Max 104 °F
Operating Temperature Min 32 °F
Resources
Reviews

Reviews

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
Q & A

Q & A

RS8-L-DIN lighting relay 08chanel 10AM how much the price?

Asked by: sameh

Is there any way to make a firmware/factory firware update to this unit?

Asked by: Ruby
