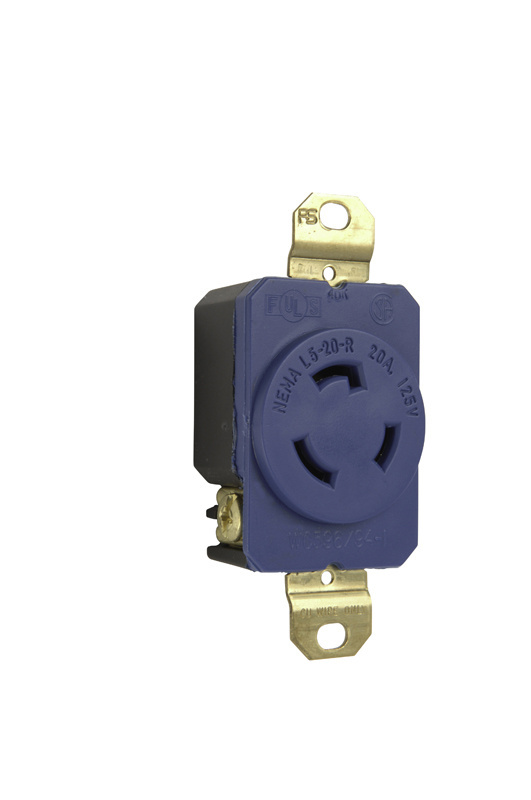

20A NEMA L520 Single Receptacle, Blue

Turnlok® Receptacle Single 3-Wire 20A 125A,

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
Face color coding by voltage facilitates locating and mating of proper devices.
One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
Side and external screw-pressure-plate back wire capability.
Accepts #14 - #10 AWG.

General Info

Dimensions

Listing Agencies / 3rd Party Agencies

cULus Listed

Yes

Additional Information

Product Environmental Profile

Yes

Technical Information

Amperage	20 A
Connection Location	Back and Side
Wire Connection Type	Internal Pressure Plates, Screw Terminals
Indoor/Outdoor	Indoor
NEMA Configuration Code	L5-20R
Number of Poles	Double Pole
Number of Wires	3
Operating Temperature	-40°-75°C
Operating Temperature Max	75 °C
Operating Temperature Min	-40 °C
Phase	Three
Voltage	125.0 V
Wire Size	14 - 10 AWG
