Front on image of a white, 14-inch enclosure featuring universal On-Q bay-style mounting holes. The cover of the enclosure is shown staggered and behind the main enclosure
Profile view of a white, 14-inch enclosure featuring universal On-Q bay-style mounting holes.
3/4 view of a white, 14-inch enclosure featuring universal On-Q bay-style mounting holes.

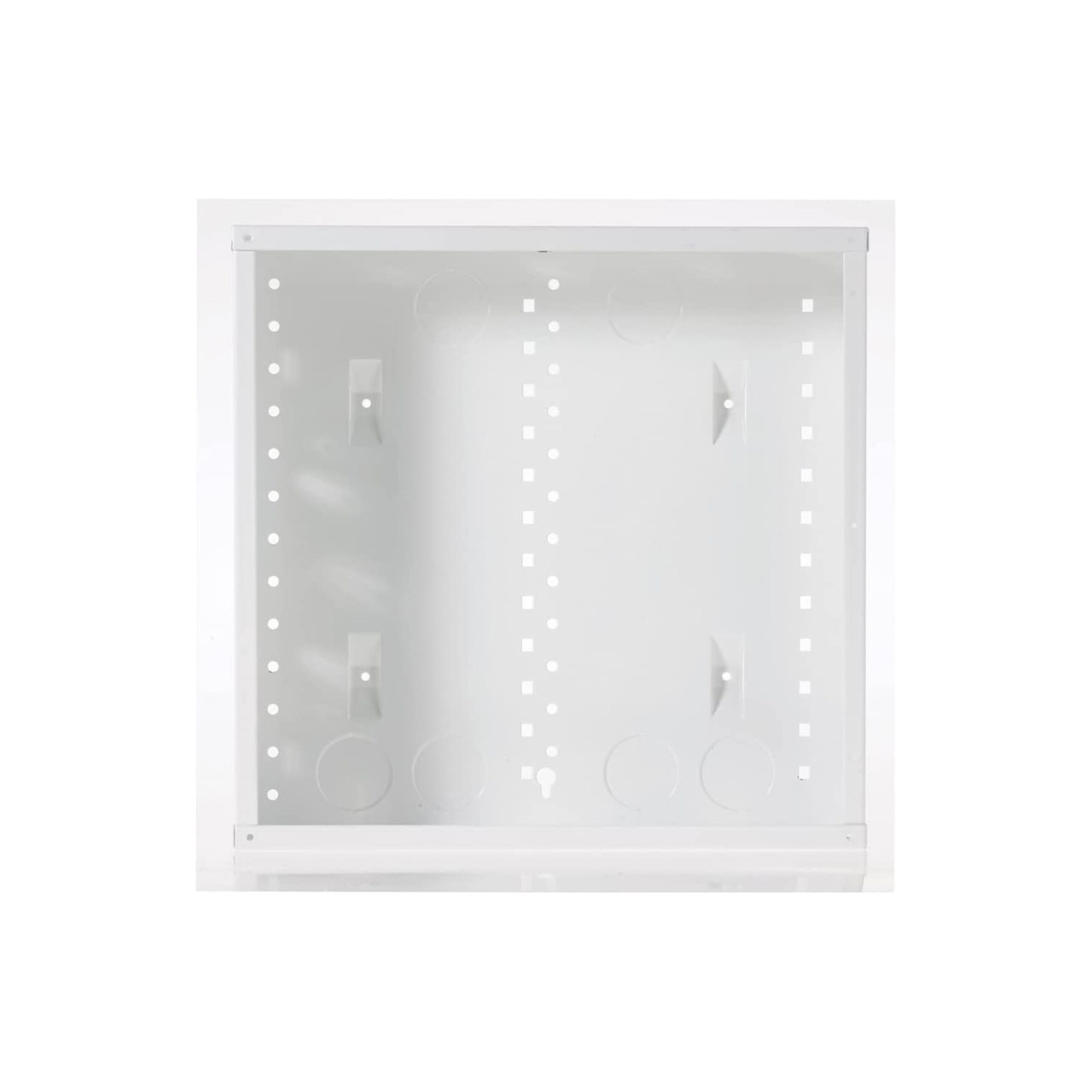

Front on image of a white, 14-inch enclosure featuring universal On-Q bay-style mounting holes.

14-inch Enclosure, No Cover

EN1480 On-Q
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 30ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

$52.52 USD

This 14"" enclosure features universal On-Q bay-style mounting holes that are compatible with all bay-style modules. It also includes larger top openings that make pulling wire easier as well as additional knockouts, more side lances, and side tabs for

Out of Stock on Legrand.us
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Includes five openings on the top of the enclosure with knockouts
  • Drywall depth indicators
  • Flush and surface installation
  • Mounting tabs provide correct flush-mount position for standard installations
  • Patented mounting system offers versatile module mounting options
  • Made in the USA
Specifications

Specifications

General Info
Color White
Type Enclosure
Material Steel
Application Sector Residential
Product Line On-Q
Country Of Origin United States
Standard UL (UL985, UL1023, UL1863), cULus, CSA, RoHS
UPC Number 080442802305
Dimensions
Product Depth US 3.6 in
Product Height US 14.0 in
Product Width US 14.25 in
Enclosure Size 14 in
Listing Agencies / 3rd Party Agencies
CSA Listed Yes
cULus Listed  Yes
Additional Information
RoHS Compliant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Technical Information
Frame Cold Rolled Steel
Thickness 0.1 in
Resources
Reviews

Reviews

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
Questions & Answers

Questions & Answers

Do you sell just the cover? Mine must have gotten thrown away during construction.

Asked by: John W.
Part number EN1420 is the cover you seek.
Answered by: Wiremold Tech Support
Date published: 2021-09-14

Do you make an expansion box for the Legrand EN1480 junction box. Mine is recessed and is too full. I need an extension.

Asked by: Weaver1216
Not for the 14" enclosures.
Answered by: Wiremold Tech Support
Date published: 2020-12-04
