RFBA 4-Gang Floor Box - On Grade
RFBA4R30OG
Wiremold
Bazaarvoice SAP Hybris Integration Version 2.8.1

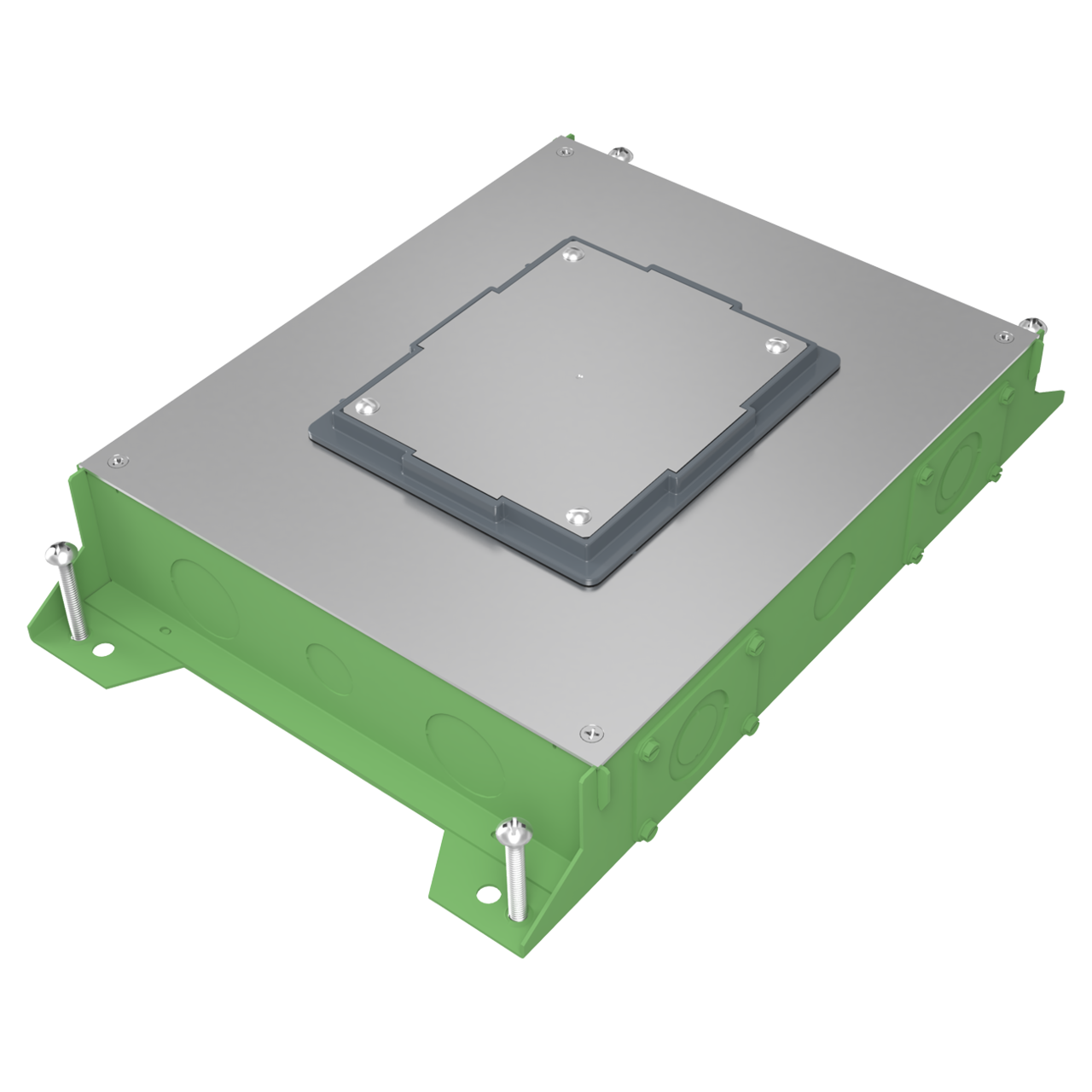

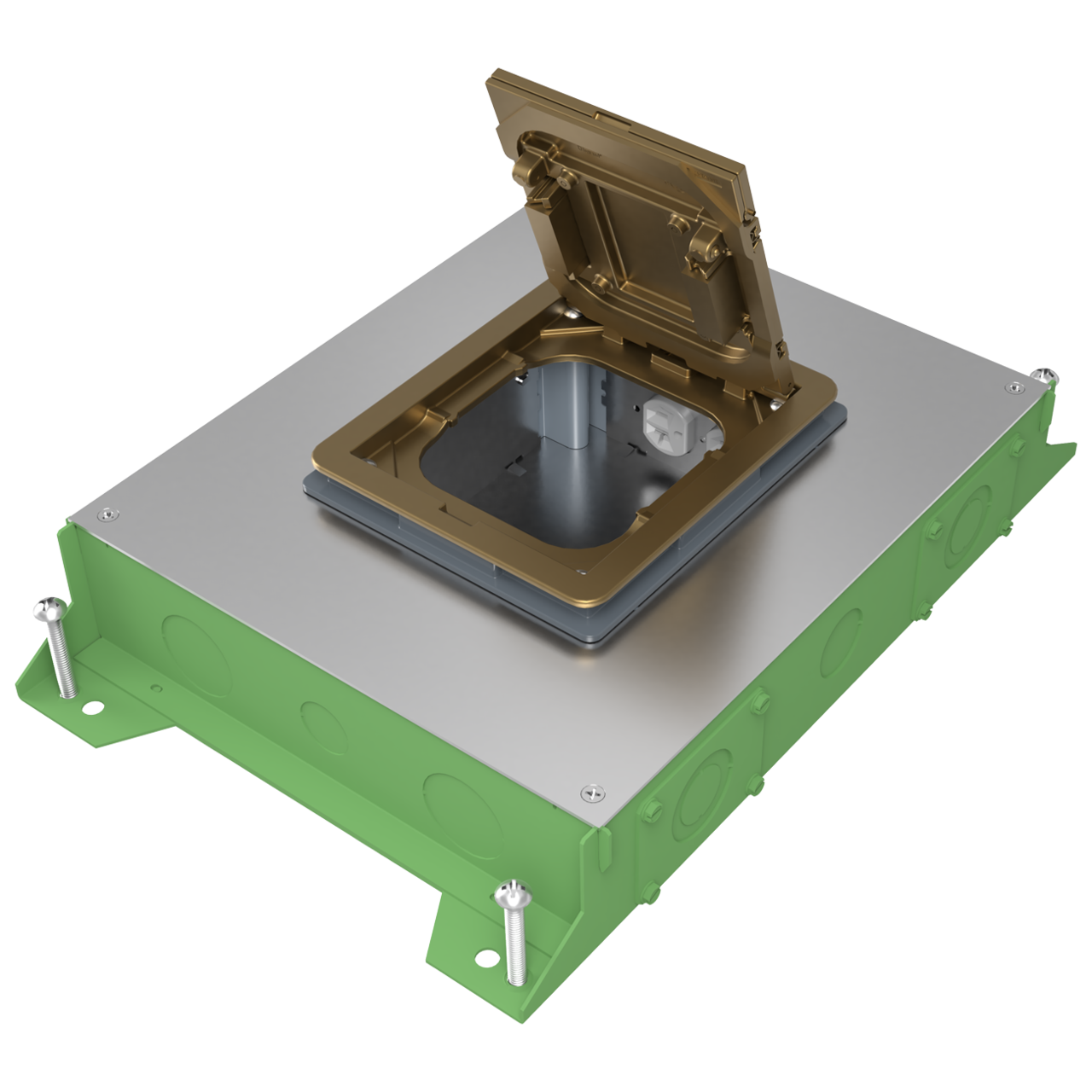

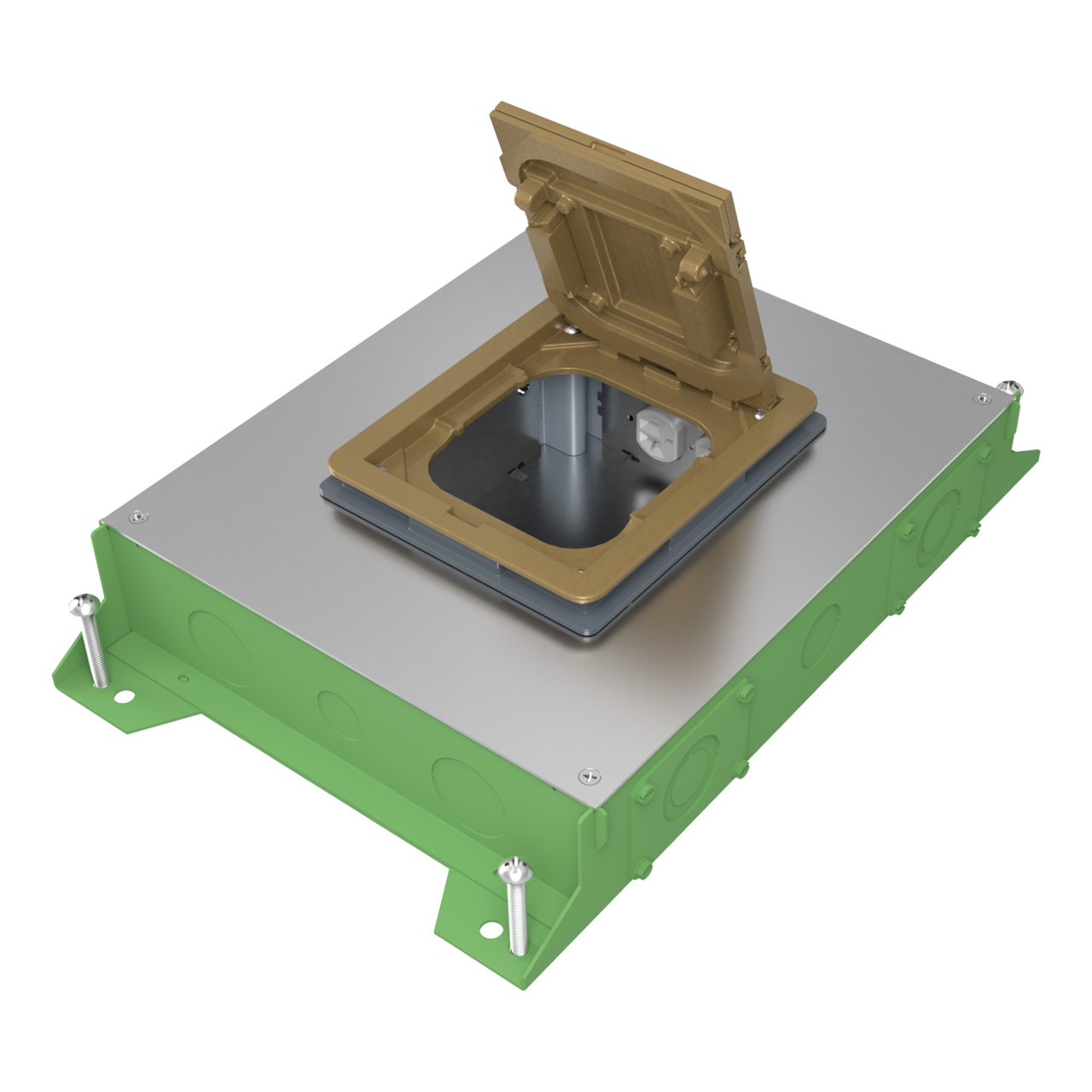

Your go-to floor box just got better. Resource RFB Series Floor Boxes are designed for maximum efficiency throughout an entire building, bringing versatile recessed activations for power and data services to open space areas or directly to workstations. No matter what size you choose, components and accessories work across the entire line interchangeably. Simply mix-and-match as needed for your project. Improved wire and cable routing makes wire pulling much easier in adjacent compartments and around corners. Available in 2-, 4-, 6- and 10-gang models with a variety of covers, colors and profiles.* Installs in tile, stone, carpet, terrazzo, wood and polished concrete. Perfect for many applications, including schools, financial institutions, commercial office buildings, hospitality and residential.
Grade
On Grade
- Above Grade
- On Grade
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- One consistent design: Mix-and-match Resource RFBA Series Floor Boxes of any size with interchangeable components. Makes every project installation quick and efficient.
- Universal sized conduit feed: Meets all requirements for each box. 2- and 4-gang shallow boxes accept a 1”” conduit feed, while all standard boxes accept a 2”” conduit feed.
- Improved wire and cable routing: Allows for easier wire pulling in adjacent compartments and around corners, reducing the overall cost for most cabling requirements.
- Two finishes: Every box configuration is available in either a standard zinc-plated construction or a lightweight ““slab-on-grade”” finish with fusion-bonded epoxy corrosion resistant paint.
- Removable dividers post-pour: Fully adjustable before and after the concrete pour.
- Adapts to most power and communication needs: Common mounting plates can be used for any of the Resource RFB Series Floor Boxes. Reduces overall life cycle cost.
Specifications
General Info
| Product Line | Wiremold | ||
| UPC Number | 786564105428 | ||
| Country Of Origin | Mexico | ||
| Installation Location | On Grade | ||
| Number of Knockouts | 20 | ||
| Application Sector | Commercial | ||
| Standard | UL514 | ||
| Type | Floor Box |
Dimensions
| Product Width US | 11.937 in | ||
| Product Depth US | 3.0 in | ||
| Knockout Size | 2 in |
Additional Information
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. | |
| Product Has Potential to Contribute to LEED | Yes | This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information. | |
| Product Environmental Profile | Yes |
Listing Agencies / 3rd Party Agencies
| cULus ListingNumber | QCIT | ||
| cULus Listed | Yes |
Buy American Act Compliance
| NAFTA | Yes |
Technical Information
| Floor Type | Concrete | ||
| Number of Gangs | 4 | ||
| Number of Compartments | 4 | ||
| Plenum | No | ||
| Indoor/Outdoor | Indoor |
Resources
Installation Instructions
CAD Drawings
RFBA2R25, RFBA2R25OG CAD Drawing - 3149
dxf
RFBA2R30, RFBA2R30OG CAD Drawing
dxf
RFBA4R25, RFBA2R25OG CAD Drawing - 3151
dxf
RFBA4R30, RFBA2R30OG CAD Drawing
dxf
RFBA6A CAD Drawing
dxf
RFBAAP CAD Drawing
dxf
RFBAB CAD Drawing
dxf
RFBADEC CAD Drawing
dxf
RFBADP CAD Drawing
dxf
RFBAMAAP CAD Drawing
dxf
RFBAS1 CAD Drawing
dxf
RFBAS2 CAD Drawing
dxf
View More
BIM Models
Guide Form Specifications
Product Environmental Profile
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
Can you tell me the size (Length x width) of the cover plate for the 2-gang RFBA floor box, standard 3.0" depth? - RFBA2R30OG thank you
Hello,
Floorport covers for the RFBA2R30OG are available in flanged and flangeless options.
Flanged covers measure 7-1/2" x 6-3/4" and flangeless are 6-1/2" x 5-3/4".
Date published: 2024-11-06
Do these boxes maintain the fire rating of the 3 hour floor?
Hello. No, there are no fire rated options within the RFBA series of floor boxes. A comparable fire-classified floor box would be the EFB45S-FC. Thanks!
Date published: 2024-10-04
Is there a way to install Panduit MiniCom cat6a jack modules in these boxes?
Hello. Yes, the RFBA6A Communications plate includes a variety of bezels and modules, including the 2AB adapter, which you would use with the CHI2M adapter from Panduit. Thanks!
Date published: 2024-09-05
Is there a color chart so the design team can actually "see" the colors available?
Hi,
Under the resources section of the webpage for this product there is a PDF brochure available for download that shows the colors.
Thanks,
Date published: 2024-10-29
What weight can these boxes withstand? We are installing in a commercial shopping mall with tile, and the owner is worried about scissors lifts or heavy equipment crushing the boxes.
Hello. Our FloorPort covers have static load ratings of 750 or 1000 lbs (see attached chart). Please note that they are not tested for rolling loads. Thanks!
Date published: 2024-07-16
Where can I buy the trim plates for my outlets inside the 4 gang floor box, also I have data inside aswell
Hello,
Device plates are available from the same store the floor box was purchased. Please call us direct at 1-844-957-3783 for a listing of locations near you.
Thank you
Date published: 2024-03-22
Do you have a part number for the piece labeled as “shell” in the installation instructions.
Hello,
The shell is provided with the box rather than separately, so we don't have a part number for the shell only.
Thank you
Date published: 2023-12-27
Is the RFBA series floor boxes and covers certified to the UL514A Standard, and if so, how do you go about getting a copy of this certification?
Hello,
Yes, the UL standard for metallic outlet boxes is UL 514A which applies to the RFBA series. Please send an email to technical.support@legrand.us for a UL pdf.
Thank you
Date published: 2023-10-27
