Resource RFB® Series of Floor Boxes are versatile recessed activation solutions that provide power, communication and/or audio/video services to open space areas, or directly to workstations. Resource RFB Series Floor Boxes are available in two- to six-gang models with a variety of aesthetic cover options including colors and profiles available. Resource RFB Series Floor Boxes have many applications, including schools, financial institutions, commercial office buildings, hospitality and residences.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Your go-to floor box just got better. Resource RFB Series Floor Boxes are designed for maximum efficiency throughout an entire building, bringing versatile recessed activations for power and data services to open space areas or directly to workstations.
- Easy-to-install
- One screw installation
- No matter what size you choose, components and accessories work across the entire line interchangeably. Simply mix-and-match as needed for your project.
- Improved wire and cable routing makes wire pulling much easier in adjacent compartments and around corners. Available in 2-, 4-, 6- and 10-gang models with a variety of covers, colors and profiles.
- Installs in tile, stone, carpet, terrazzo, wood and polished concrete. Perfect for many applications, including schools, financial institutions, commercial office buildings, hospitality and residential.
Specifications
General Info
| Product Line | Wiremold | ||
| Color | Gray | ||
| Finish | Pre-Galvanized | ||
| UPC Number | 786564105596 | ||
| Country Of Origin | United States | ||
| Application Sector | Commercial | ||
| Standard | UL514 |
Additional Information
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. | |
| Product Has Potential to Contribute to LEED | Yes | This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information. |
Listing Agencies / 3rd Party Agencies
| cULus ListingNumber | QCIT | ||
| cULus Listed | Yes |
Buy American Act Compliance
| NAFTA | Yes |
Resources
Installation Instructions
CAD Drawings
RFBA2R25, RFBA2R25OG CAD Drawing - 3149
dxf
RFBA2R30, RFBA2R30OG CAD Drawing
dxf
RFBA4R25, RFBA2R25OG CAD Drawing - 3151
dxf
RFBA4R30, RFBA2R30OG CAD Drawing
dxf
RFBA6A CAD Drawing
dxf
RFBAAP CAD Drawing
dxf
RFBAB CAD Drawing
dxf
RFBADEC CAD Drawing
dxf
RFBADP CAD Drawing
dxf
RFBAMAAP CAD Drawing
dxf
RFBAS1 CAD Drawing
dxf
RFBAS2 CAD Drawing
dxf
View More
BIM Models
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
What kind of device can i put on the RFBADEC in the page, say Accepts Decorator Style Receptacles, Communication or A/V Devices. could you give me an examples please or pictures.
Hello Razo,

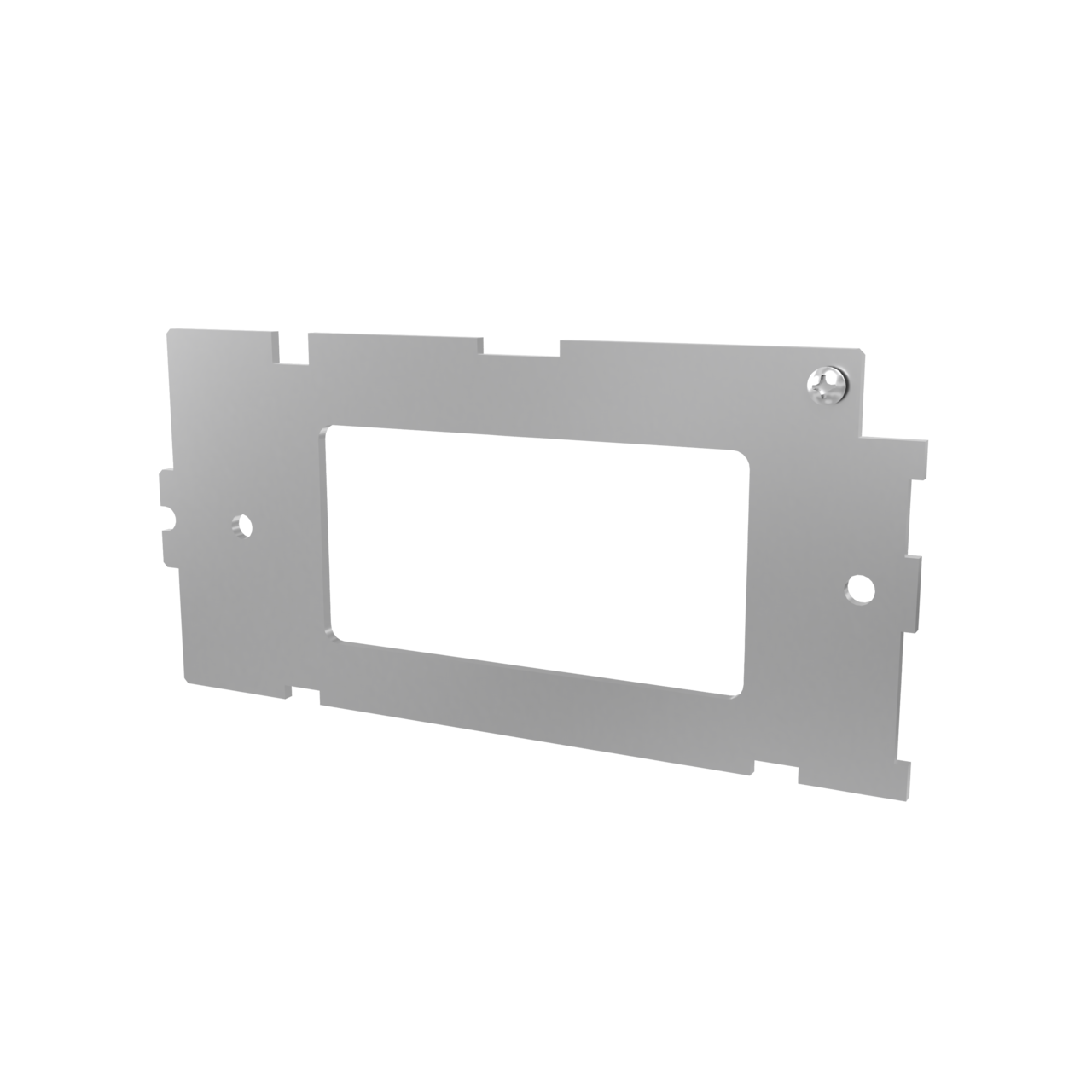

Plate RFBADEC can accept a decorator style electrical device or a decora style communication strap (frame) which is often used with low voltage jacks for communication, data or audio video connections.
An example of the communication strap can be found in the link below which will direct you to our website.
https://www.legrand.us/audiovisual/data-connectivity/straps/6-port-decorator-outlet-strap-brown/p/wp3416gy
For any additional questions please feel free to reach out to us direct at 1-844-957-3783. From the main menu choose option 2 for Wiremold followed by option 2 for technical support.
Thank you for your interest in our product.
