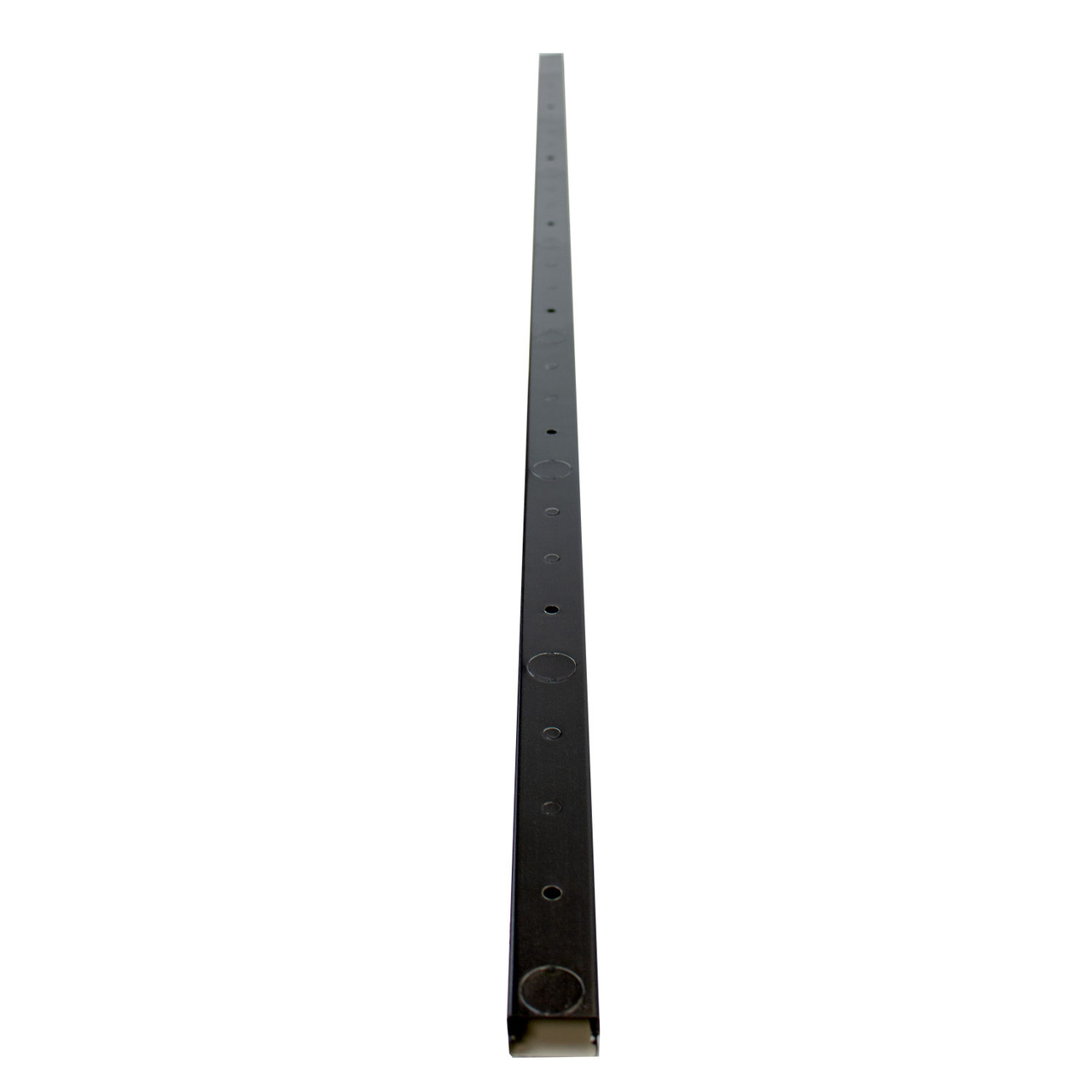

2000 RACEWAY BASE AND COVER BLACK

BK2000BC Wiremold

Plugmold® Multioutlet Systems are available in a wide variety of lengths and fittings and in a variety of finishes to provide versatile solutions for many applications. Plugmold options include single or alternating circuits, standard or isolated ground receptacles, GFCI protection, tamper-resistant protection, USB charging, Snapicoil® harnesses of prewired receptacles, and cord-ended units. Plugmold® Multioutlet Systems are available in black or ivory ScuffCoat™ finish, painted white or gray enamel steel, stylish stainless steel, anodized aluminum and durable textured ivory nonmetallic. The painted steel product works with many types of decor and is paintable to integrate with most color schemes. Durable stainless steel and anodized aluminum Plugmold products are corrosion-resistant, making them ideal for labs.

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Base – 2000B .040" (1.0mm) steel. Cover – 2000C .025" (.6mm) steel.

Specifications

General Info

Product Line	Wiremold
UPC Number	786776142334
Country Of Origin	United States
Application Sector	Commercial
Standard	cULus Listed Base & Blank Cover: File E4376 Guide RJBT. Multioutlet Assemblies: File E15191 Guide PVGT. Fittings: File E41751 Guide RJPR. Base & Blank Cover & Plugmold Series w/Snapicoil Haarness: Meets Article 386 of NEC. Meets Section 12-3032 of CEC. cULus Listed Raceway: File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Base & Black Cover: Meets Article 386 of NEC. Meets Section 12-600 of CEC.
Type	Plugmold

Dimensions

Product Depth US

0.75 in

Additional Information

RoHS Compliant

Yes

This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	E4376
cULus Listed	Yes

Buy American Act Compliance

NAFTA

Yes

Technical Information

Amperage	15 A
Enclosure Type	Steel
Voltage	125.0 V
Environmental Conditions	Dry interior locations

Resources

Cutsheet

BK2000BC Cutsheet

pdf

Reviews

Questions & Answers

I work at an Arch office and am looking for something to put under an upper cabinet instead of on the wall. I like the spacing of the outlets in this. Do you have anything that could be cut to fit? We are looking for something around 24"?

Asked by: tom

Hello, Plugmold can be shortened on the job site by following the installation instructions included with the product. If required, cut the base to length and carefully debur any cut ends before mounting. If the edge of any receptacle falls closer than 1 1/2" from the end of the unit, then that receptacle must be cut out to allow sufficient space for the installation of the end fitting. Thank you

Answered by: Wiremold Tech Support

Date published: 2024-07-26
