20GB12 Steel Plugmold® Multioutlet System

6' Plugmold Multioutlet System with 8 single outlets 12 inches apart, GB

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Steel Raceway. Provides superior strength for any dry location installation.
Compact, low profile appearance. Requires minimal space.
Available in Ivory ScuffCoat or gray baked enamel finish. The durable ScuffCoat provides a durable, scratch-resistant finish while the gray baked enamel compliments the décor or can be painted.
Full range of fittings. Provides a complete wiring solution.
Single-and-dual-gang boxes. Wire devices into the raceway system or protect a Plugmold® strip with a surge or GFCI device.
Factory wired Plugmold® sections available in 3’, 5’, and 6’ lengths with 15A receptacles installed in cover. Ideal for short runs requiring additional outlets in electrically busy areas.
Single, alternating circuit, and isolated ground receptacles. Meets virtually any job requirement.
Choice of receptacle spacing. Center spacing between receptacles of 6'', 9'', 12'', and 18''.

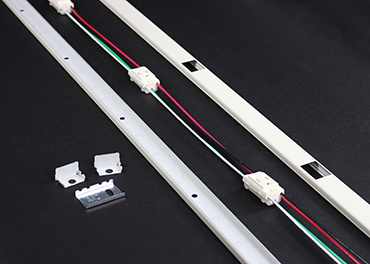

Snapicoil harnesses of prewired receptacles in 48’ and 50’. Eliminates multiple splicing, speeding up installation on long runs.
Snapicoil harnesses offer a choice of receptacle spacing. Center spacing between receptacles of 12'', 18'' and 30''.
Customization available. All products can be modified to accommodate virtually any application.
This product meets the material restrictions of RoHS.

General Info

Product Line	Wiremold
UPC Number	786776091830
Country Of Origin	United States
Number of Receptacles	8
Application Sector	Commercial
Standard	cULus Listed Base & Blank Cover: File E4376 Guide RJBT. Multioutlet Assemblies: File E15191 Guide PVGT. Fittings: File E41751 Guide RJPR. Base & Blank Cover & Plugmold Series w/Snapicoil Haarness: Meets Article 386 of NEC. Meets Section 12-3032 of CEC. cULus Listed Raceway: File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Base & Black Cover: Meets Article 386 of NEC. Meets Section 12-600 of CEC.
Type	Plugmold
