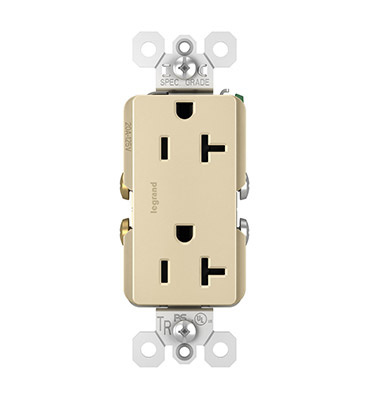

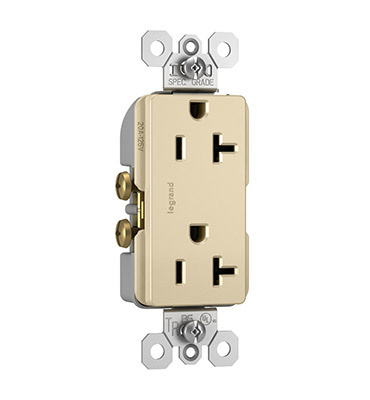

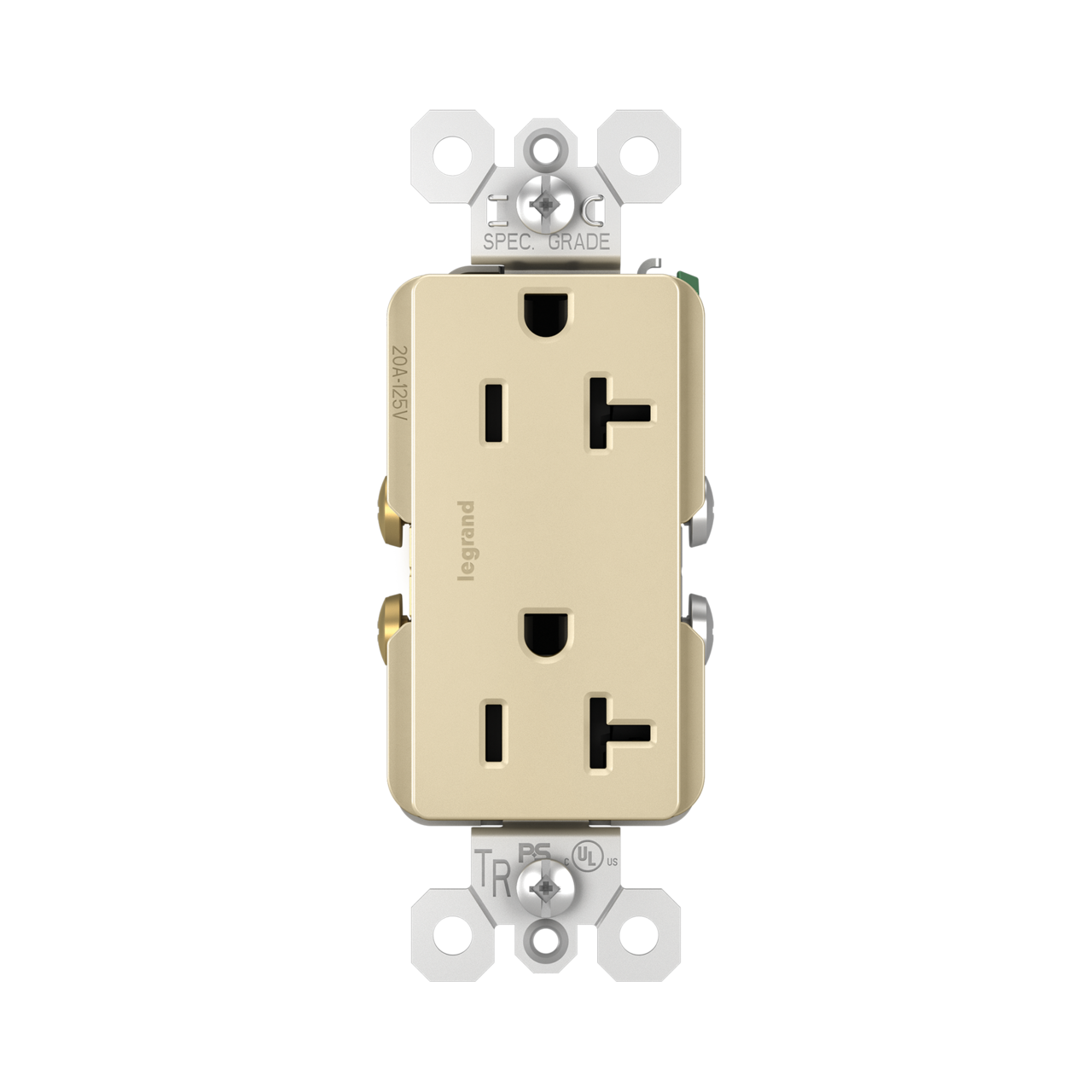

radiant® Spec Grade 20A Tamper-Resistant Receptacle, Ivory
TR26352RI
radiant Collection
radiant® Spec Grade 20A Tamper-Resistant Receptacle, Gray is rated
out of
5 by
40.
Bazaarvoice SAP Hybris Integration Version 2.8.1
$7.10 USD
Take a step up from the standard. This tamper-resistant duplex receptacle installs easily for the basic power every space needs, while featuring the sleek, clean lines of radiant® for a sophisticated look. 20A outlets are ideal for use with larger appliances and in commercial settings, as well as to meet regional requirements (Chicago, Canada).
Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.
Out of Stock on Legrand.us
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Replaces any standard receptacle with ease, in as little as 10 minutes.
- Features durable, high-impact resistant thermoplastic construction.
- Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with "invisi-shutters" for an invisible effect.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Specifications
General Info
Product Line | Pass & Seymour | ||
Color | Ivory | ||
UPC Number | 785007056020 | ||
Country Of Origin | Mexico | ||
Number of Receptacles | 2 | ||
Outlet Type | Tamper-Resistant | ||
Application Sector | Commercial, Residential | ||
Type | Outlet |
Dimensions
Product Width US | 1.37 in | ||
Product Depth US | 0.93 in | ||
Product Height US | 3.28 in |
Listing Agencies / 3rd Party Agencies
cULus Listed | Yes |
Technical Information
Is Tamper-Resistant | Yes | ||
Amperage | 20 A | ||
Number of Poles | Double Pole | ||
Indoor/Outdoor | Indoor | ||
Mounting Type | Box |
Resources
Supporting Document
Guide Form Specifications
Premium Content
Reviews
Rated 5 out of
5
by
Andy from
Simple update; looks great.
We changed out our old biscuit colored outlets throughout our house with crisp, modern Legrand outlets and screwless wall plates. It was an inexpensive, easy update that really looks great.
Date published: 2018-04-04
Rated 5 out of
5
by
Jeremy from
Great looking outlets
These match the 15A Legrand Radiant outlets perfectly. The shipping was quick, and I've already installed 15 of these, with just a couple more to go. No issues at all so far. One thing of note, make sure you don't force your plugs into these outlets; they're tamper-resistant (TR), so it may seem like you need to force the plugs to get them in. If a plug is struggling to get in, rather than force it, just move it around a bit or try again. Also, before you install them, take a phone charger or something and plug/unplug them from the outlet a few times to "break in" or "loosen up" the TR tabs, and that will make your first couple of plug-ins much easier.
Date published: 2021-08-10
Rated 5 out of
5
by
Anonymous from
Perfect Fit, Newbie Electrician
Thanks to @Influenster and @legrandna for this complimentary tamper resistant receptacle. It took a while to complete this campaign because I was very nervous to do this DIY myself. I honestly laughed at myself after the quick 5 minute instalation process because of how easy this was to do. With taking the old outdated receptacle out and putting this new one in, it made me feel like a newbie electrician lol! The instructions on the plastic wrapping didn't make any sense to me so I had to get help from old reliable YouTube. My grandpa was also telling me how to do it step by step but I ended up putting the wires through the back and not by the screws like he had once replaced. It would've worked fine either way. Definitely give this 5 stars because for the longest time on the old receptacle only one outlet worked, so I was very happy to have this fixed so my grandpa can use both outlets now for all his medical equipment. Super happy I was selected for this campaign and that I was able to fox this issue for my grandpa. He needs his medical equipment plugged in 24/7 so it was awesome to remove the extension cord he had and plug in a surge protector on the bottom outlet:)
Date published: 2024-06-10
Rated 5 out of
5
by
roxfrost505 from
Neat and Easy to install.
The installation process for this plug wasn't as difficult as we thought. It was completely compatible with our original ones. The design was great for all sorts of plugs. It was safe to use and very durable.
Date published: 2024-05-31
Rated 5 out of
5
by
emmylovesmakeup from
Easy to Install
This outlet was super easy to put in. With just a few minutes I was able to change a pesky outlet that had gone out. The design is super sleek and it looks great!
Date published: 2024-05-28
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
Was the Legrand E42190 Weather rated?
Thank you for your inquiry. E42190 represents the UL listing number for our GFCI devices. legrand GFCI outlets, such as part number 2097TRWRW, meet the following Weather-resistant requirements:
Listed to the Weather-Resistant
Supplement of UL498 meeting demanding UL requirements including:
- Ultraviolet light exposure test
- Cold impact test
- Accelerated aging test
- Stringent material requirements for current carrying parts, wire binding screws, and mounting straps to ensure superior corrosion resistance.
If you have any other questions or comments, please get in touch with us at (800) 223-4185 8:00 a.m. – 6:00 p.m. EST or by email at Tech.Support@legrand.us.
Date published: 2024-12-19
I have a Legrand E42190 in my kitchen. I pushed one of the buttons (I don’t know why.) A red light is on and the receptacal doesn’t work. Can I reset it?
Press the red reset button to reset it to ON.
Date published: 2024-08-12
Does this product (TR26352RNICC6) come with the wall plate?
Nope, sold separately.
Date published: 2024-11-07
Looking for 20amp in a dark bronze, wondering if the brown is the dark bronze
Hello Kevin,
Please review the following part number for your Dark Bronze request:
Part #: TR26352RDBCC6
Best Regards,
Technical Support
Date published: 2024-08-08
I see dimensions of the receptacle, but how tall and wide is the trim?
If you're referring to the Radiant one-gang screwless wall plate, part number RWP26WCC10, it's 3.15" x 4.94".
Date published: 2024-11-07
Is this product in compliance with BAA?
Hello,
Please reach out to Pass & Seymour Technical Support for further assistance with your Buy America Act request.
Pass & Seymour Technical Support
844-957-3783
Email Us: tech.support@legrand.us
Best Regards,
Technical Support
Date published: 2024-11-07
Hello! Can you tell me if p/n TR26352RW has a pinch connector or pigtail? I'm being asked for one that can be pinched vs wrapped around the bolt.
It has both pinch connectors and wrap-around. For the pinch connectors, you push the wires straight into the holes in the back, similar to a standard push-lock outlet, but you need to screw down the screw to tighten the wire into place.
Date published: 2024-11-07
Is there a Legrand non-GFCI 20A TR gray receptacle that matches the finish of the 20A gray GFCI 2097TRGRY? The closest I could find is TR26352RGRY, but it has a matte gray finish unlike the satin finish of 2097TRGRY.
TR26362GRY is the non Radiant equivalent receptacle.
Date published: 2022-02-02
