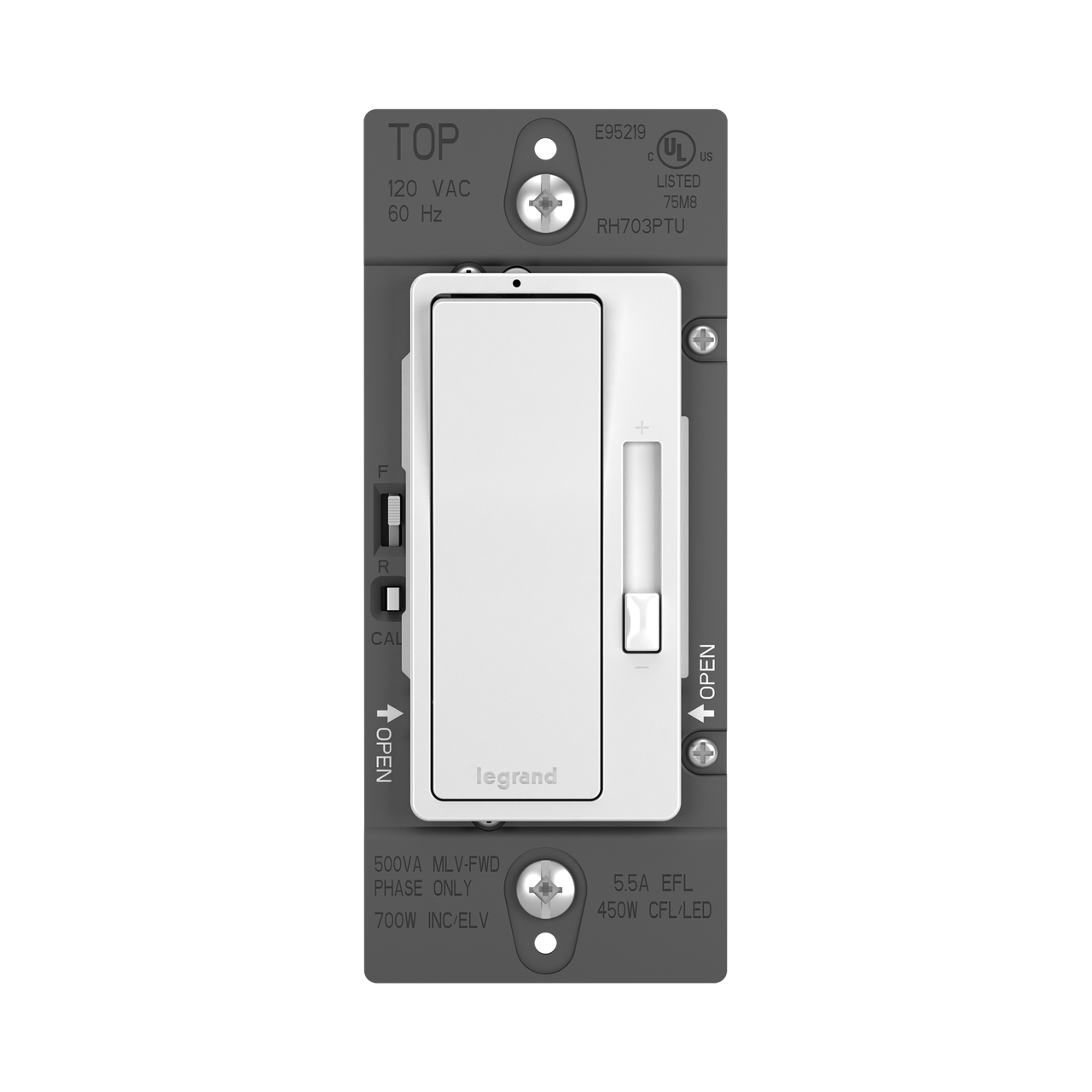

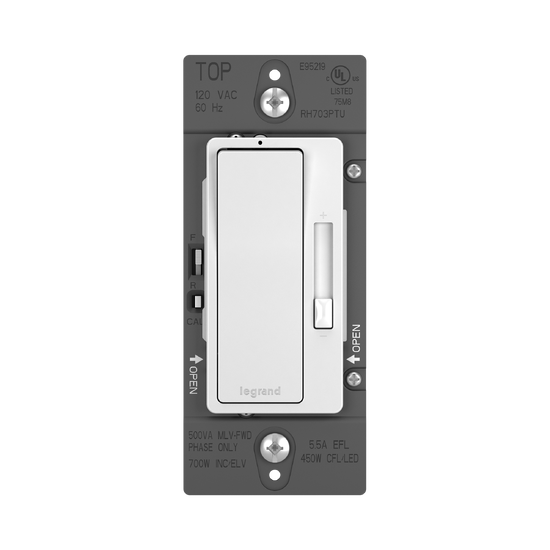

radiant® LED/CFL Dimmer, Tri-Color
RHL743PTC
radiant Collection
Bazaarvoice SAP Hybris Integration Version 2.8.1
$55.41 USD
Upgrade your space with precise dimming control and exceptional style. This dimmer from the radiant® Collection is optimized for use with LED bulbs and fixtures compliant with the SSL 7A standard for energy efficiency.
Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Quantity
In Stock
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- SSL 7A - Compliant, this dimmer is for use with LED bulbs and fixtures also designed to the SSL 7A standard for efficiency. For use in both single-pole and 3-way applications.
- Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Constant memory features returns lights to their previous level after a power failure or outage.
- No derating* required for 2-gang applications. * Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
- Features durable, high-impact resistant thermoplastic construction.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Specifications
General Info
| Product Line | Pass & Seymour | ||
| Color | Ivory, Light Almond, White | ||
| Finish | Matte | ||
| UPC Number | 785007133875 | ||
| Country Of Origin | China | ||
| Features | Locator Light | ||
| Switch Type | Paddle, Slider | ||
| Number of Switches | 1 | ||
| Application Sector | Residential | ||
| Standard | CSA Listed, cULus, UL Listed | ||
| Warranty Type | Limited Lifetime Warranty | ||
| Type | Dimmer |
Dimensions
| Product Width US | 1.29 in | ||
| Product Depth US | 1.0 in | ||
| Product Height US | 3.18 in |
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes |
Technical Information
| Connection | Screw Terminals | ||
| Number of Gangs | 1 | ||
| Amperage | 5.5 A | ||
| Bulb Compatibility | CFL, Halogen, Incandescent, LED | ||
| Number of Poles | 3-Way, Single Pole | ||
| Wire Size | #14 - #10 AWG | ||
| Wattage | 700 W | ||
| Mounting Type | Box | ||
| Environmental Conditions | Humidity: Less than 95% non condensing |
Resources
Cutsheet
Installation Instructions
Brochure
Supporting Document
Sell Sheet
Guide Form Specifications
Premium Content
Related Products
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
RHKITW | radiant Collection
Interchangeable cover to update the look of a radiant® dimmer.
$6.76
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
RHL743PW | radiant Collection
Offers precise dimming control, optimized for energy efficient use with SSL 7A lights/bulbs.
$53.74
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
RH703PTCCCV6 | radiant Collection
Delivers precise light level control of incandescent dimmable bulbs, with classic style.
$28.16
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
RH703PTUTCCCV4 | radiant Collection
The most stylish and versatile dimming solution, compatible with virtually any dimmable bulb.
$65.94
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
RHL373PTC | radiant Collection
Delivers precise control of CFL/LED dimmable bulbs, as well as energy savings, with classic style.
$70.81
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
Are you able tell me the difference between the RHL743P and the RH703PTUW- they seem to do the same loads.
The RH703PTUW is our Tru-Universal dimmer. This dimmer is capable of switching between forward (MLV) and reverse (ELV) phase dimming. This dimmer features a preset, single pole or three-way operation. Our Tru-Universal dimmers are compatible with most types of lighting, excluding 0-10v fixtures. The Tru-Universal dimmer also has a self-calibration feature built-in. This dimmer does require a neutral wire to be installed.
The RHL743P is our SS7A compliant CFL/LED dimmer. This dimmer also features a preset, single pole or three-way operation.
Date published: 2024-09-11
is this a reverse phase dimmer
The RHL743PW is a Forward phase only dimmer.
Date published: 2021-09-29
Good morning I have 8 fixtures with led lamps in them. The total wattage is 648 watts. Can you tell me a good dimmer for it. Need good quality does not have to be decorative. Thank you
I would contact Technical Support with more specifics on the type of LED's so they can suggest the correct dimmer for your application.
P&S/Radiant products
1.800.223-4162 opt 3
Mon - Fri: 8am - 8pm EST
(excluding holidays)
Email Us - tech.support@legrand.us
Date published: 2020-01-10
