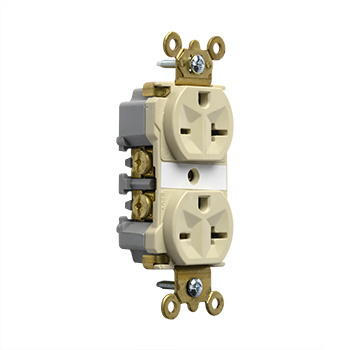

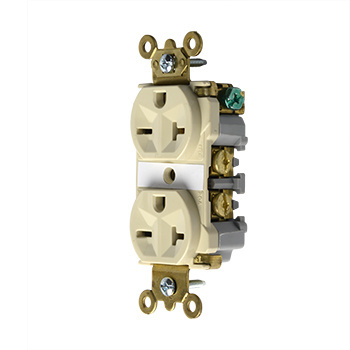

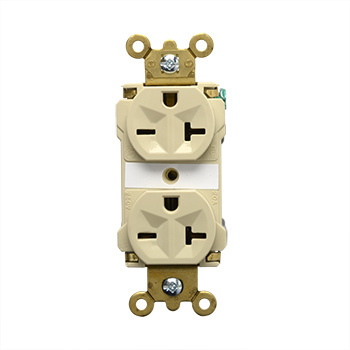

Industrial Extra Heavy-Duty Spec Grade Receptacles, Back & Side Wire, 20A, 250V, Ivory
5862AI
Pass & Seymour
Industrial Extra Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 20amp 250volt Black
1-2 Weeks
Added to Your Shopping Cart
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?
Features
- One-piece brass mounting strap with integral ground.
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
- Two drive screws anchor strap to back body and face.
- Exclusive patented feature, circuit label on face allows permanent circuit identification.
- .036 inch thick, brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and back body.
- Oversized #10 deep tri-drive head brass terminal and ground screws.
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
- External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
- Line terminals accept #14 -- #10 AWG stranded or solid copper clad conductors.
- Auto-ground clip assures positive ground.
- Corrosion-resistant models have nickel-plated straps and contacts.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Specifications
General Info
| Color | Ivory | ||
| UPC Number | 785007528350 | ||
| Countries Of Origin | Mexico | ||
| Product Line | Pass & Seymour | ||
| Application Sector | Residential/Commercial | ||
| Standard | UL 498, WC596 |
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes | ||
| cULus ListingNumber | 140596 |
Technical Information
| Number of Poles | Double Pole | ||
| Voltage | 250 V | ||
| Phase | 3 | ||
| Wire Size | 10-14Awg | ||
| Number of Wires | 3 |
