Isolated Ground Heavy Duty Spec Grade Single Receptacles, Back and Side Wire, 20A, 125V, Orange

IG5361 Pass and Seymour

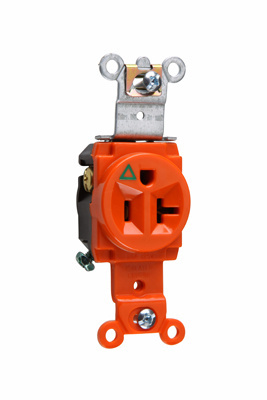

Isolated Ground Heavy-Duty Spec Grade Single Receptacle Back and Side-Wire 20A 125V

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

IG symbol and Isolated Ground markings for easy identification and circuit delineation.
Triple-wipe brass contacts ensure lasting, positive contact with plug blades.
High-impact resistant nylon face resists impacts and scrapes.
Corrosion-resistant plated steel strap.
Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
Plastic barrier isolates grounding terminal from mounting strap and metal boxes.
Side and internal screw-pressure-plate back wire capability with #14 - #10 AWG copper or copper-clad, solid or stranded wire.
Auto-ground clip assures positive ground.
For covering patents, see www.legrand.us/patents.
For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact

Specifications

General Info

Product Line	Pass & Seymour
Color	Orange
UPC Number	785007653618
Country Of Origin	Mexico
Application Sector	Commercial
Standard	UL498, CSA C22.2 No. 42, FEDSPEC

Dimensions

Product Width US	1.38 in
Product Depth US	1.093 in
Product Height US	1.68 in

Listing Agencies / 3rd Party Agencies

cUL ListingNumber	140596
cUL Listed	Yes

Technical Information

Dielectric Strength	Withstands 2000V minimum
Connection	Back and side wire
Number of Wires	3
Temperature Rating	-40° - 60° C
Amperage	20 A
Number of Poles	Double Pole
Wire Size	14 - 10 AWG
Environmental Conditions	Flammability: UL94 V2

Resources

Cutsheet

IG5361 Cutsheet

pdf

Reviews

Questions & Answers

How do I acquire the IG5361 receptacles in White (IG5361-W). Seems these are now hard to get and we use these in one of our products.

Asked by: Anonymous

Thank you for your inquiry. The IG5361 is only available in Orange and in 15 or 20 Amp configurations. Please feel free to contact Pass & Seymour Technical Support (800-223-4185) if you need additional assistance. Pass & Seymour Technical Support Phone #: 800-223-4185 Monday - Friday | 8:00am - 6:00pm Eastern Standard Time (excluding holidays)

Answered by: Justin

Date published: 2024-03-28
