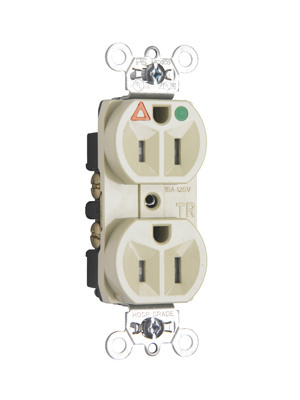

Tamper-Resistant Isolated Ground Hospital Grade Receptacle, Back and Side Wire, 15A, 125V, Ivory
TRIG8200I
Pass and Seymour
Bazaarvoice SAP Hybris Integration Version 2.8.1
Tamper-Resistant Isolated Ground Hospital Grade Duplex Receptacle, Back and Side Wire, 15amp 125volt, Orange.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Dual mechanical shutter system to help prevent insertion of foreign objects.
- Auto-ground clip assures positive ground.
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
- Backed-out tri-drive brass terminal screws for faster installation.
- Internal screw-pressure-plate back and side wire capability.
- Two back wire holes for additional wiring flexibility.
- Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
- .032 inch thick brass triple-wipe power contacts.
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Specifications
General Info
| Product Line | Pass & Seymour | ||
| Color | Ivory | ||
| UPC Number | 785007012477 | ||
| Country Of Origin | Mexico | ||
| Application Sector | Commercial | ||
| Standard | cULus UL498, FEDSPEC |
Dimensions
| Product Width US | 1.187 in | ||
| Product Depth US | 1.25 in | ||
| Product Height US | 2.625 in |
Listing Agencies / 3rd Party Agencies
| cULus ListingNumber | 140596 | ||
| cULus Listed | Yes |
Technical Information
| Dielectric Strength | Withstands 2000V minimum | ||
| Is Tamper-Resistant | Yes | ||
| Connection | Back and side wire | ||
| Number of Wires | 3 | ||
| Temperature Rating | -40° - 60° C | ||
| Amperage | 15 A | ||
| Number of Poles | Double Pole | ||
| Wire Size | 14 - 10 AWG | ||
| Environmental Conditions | Flammability: UL94 V2 |
