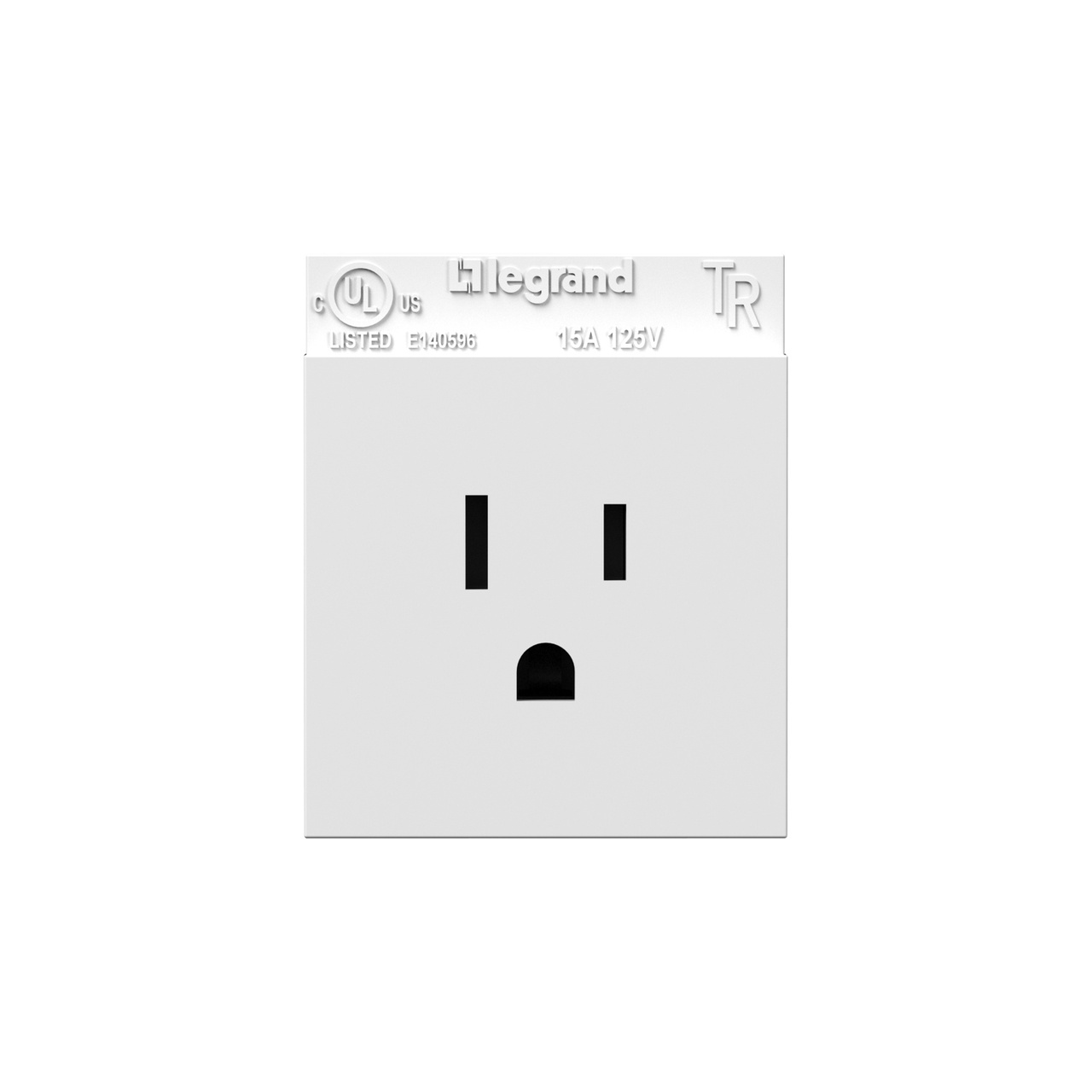

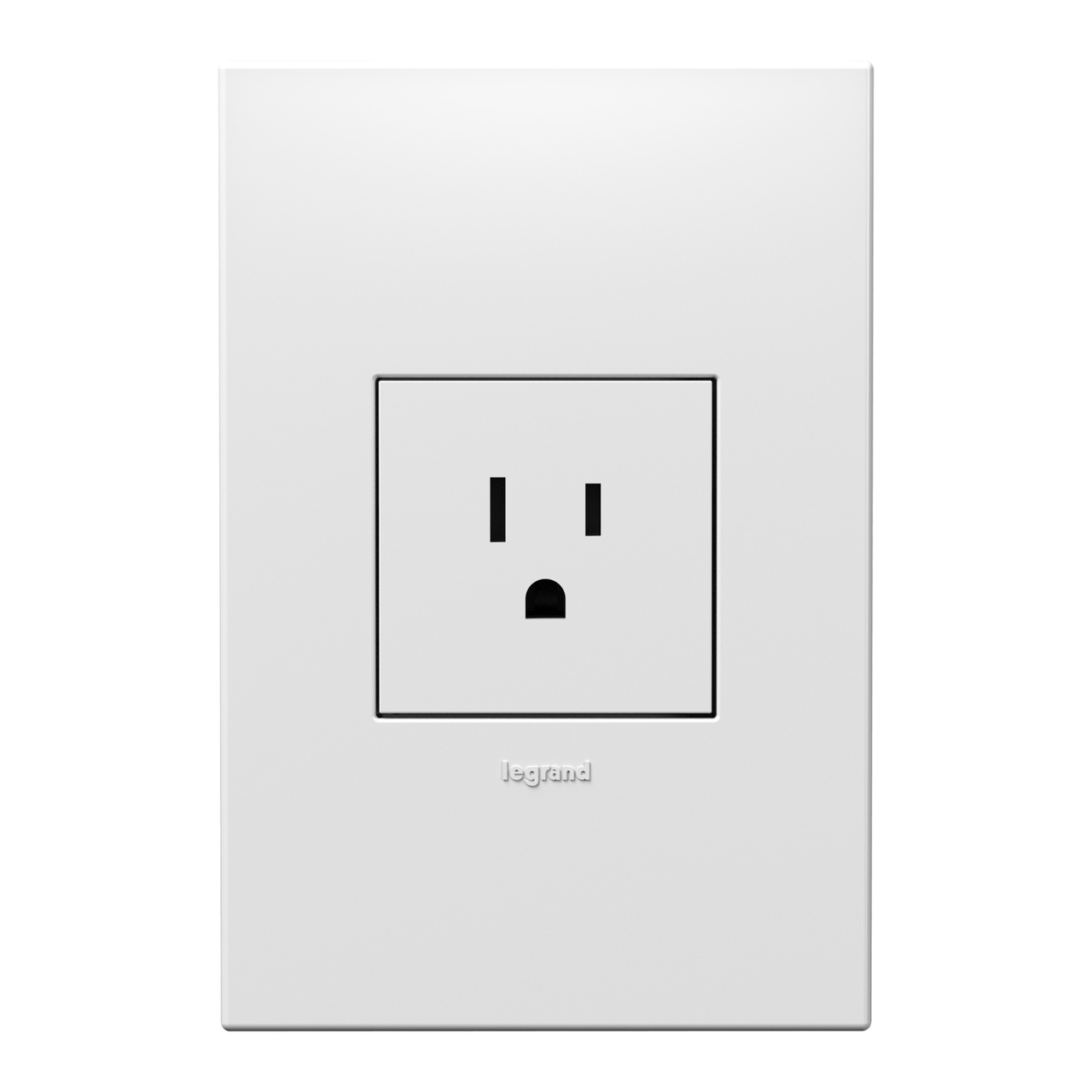

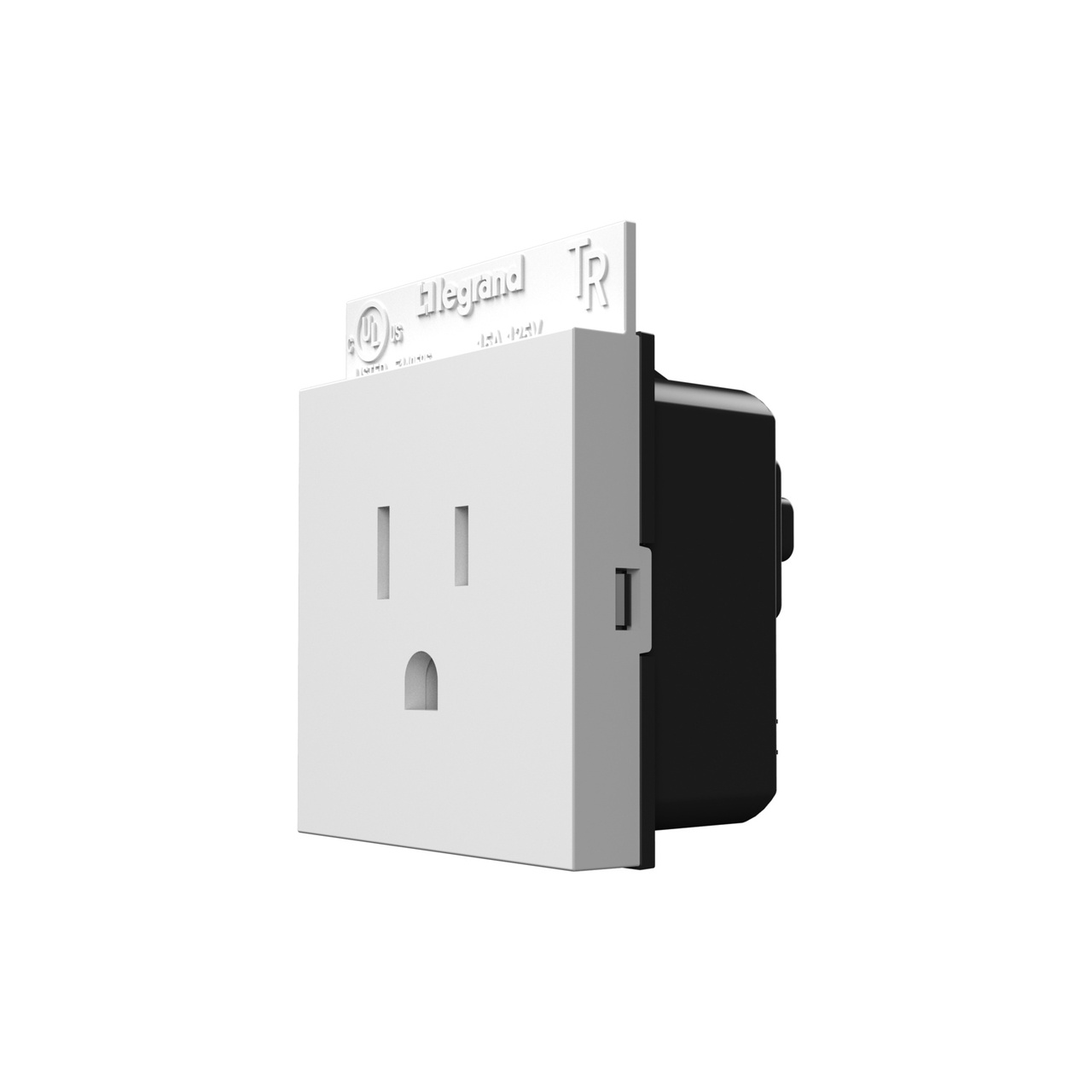

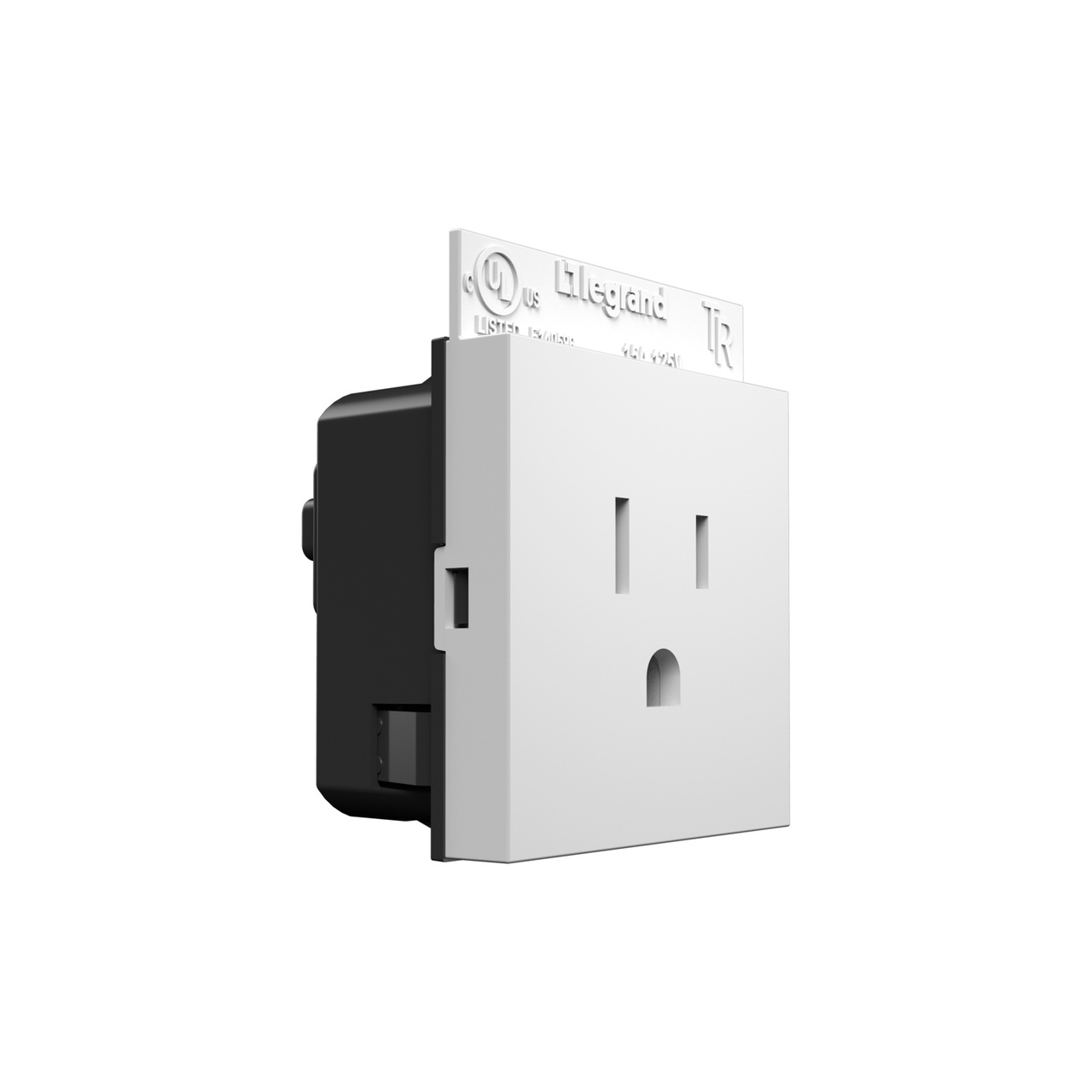

adorne® 15A Single Tamper-Resistant Outlet, White
ARTR151W10
adorne Collection
adorne 15A Single Tamper-Resistant Outlet is rated
out of
5 by
4.
Bazaarvoice SAP Hybris Integration Version 2.8.1
$10.30 USD
Designed with the same commitment to style and safety as the entire adorne Collection, this device is ideal as a dedicated outlet for large or stationary appliances, or in small or narrow areas where a single plug is needed. The single outlet features "invisi-shutters" for discreet tamper-resistance that keeps children safe without compromising on style.
Made exclusively for use with screwless Wall Plates from the adorne® Collection, sold separately.
Quantity
In Stock
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- For complete installation, device must be paired with an adorne® screwless Wall Plate (not included). Available in a range of contemporary colors and stunning finishes.
- Replaces a standard outlet with ease in as little as 10 minutes.
- Creates a designated outlet, ideal for use with appliances or products and devices with larger plugs.
- Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with "invisi-shutters" for an invisible effect.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
Specifications
General Info
| Product Line | Pass & Seymour | ||
| Color | White | ||
| Finish | Matte | ||
| UPC Number | 785007404357 | ||
| Country Of Origin | China | ||
| Number of Receptacles | 1 | ||
| Device Front Face Size | Full-Size | ||
| Device Backbody Size | Full-Size | ||
| Outlet Type | Tamper-Resistant | ||
| Application Sector | Residential | ||
| Standard | RoHS, CSA, cULus, UL, Conforms to NEMA WD-1 and WD-6 | ||
| Warranty Type | Limited Lifetime Warranty | ||
| Type | Single, Tamper-Resistant |
Dimensions
| Product Length US | 1.33 in |
Additional Information
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Listing Agencies / 3rd Party Agencies
| CSA Listed | Yes | ||
| cULus Listed | Yes | ||
| CSA File Number | C22.2 No.42 |
Technical Information
| Seismic Tested | No | ||
| Connection | Wired | ||
| Amperage | 15 A | ||
| Current Rating | 15 A | ||
| Indoor/Outdoor | Indoor | ||
| Wattage | 1875 W | ||
| Mounting Type | Box | ||
| Connection Type | Internal Pressure Plates | ||
| Environmental Conditions | Flammability Rating: UL 94 V2 |
Resources
Cutsheet
Installation Instructions
CAD Drawings
Brochure
Supporting Document
Guide Form Specifications
Related Products
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
ARTR152W4 | adorne Collection
Select an adorne tamper-resistant outlet to extend this unique look to every inch of your remodel.
$5.68
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
AWP1G2WH6 | adorne Collection
Glossed to perfection, for a finish as captivating as it is contemporary.
$6.87
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
AWP1G2WHW10 | adorne Collection
Ideal for all-white projects that want a look that’s bright and clean, with a hint of added sheen.
$7.94
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
ARCD152W10 | adorne Collection
Stay stylish and safe with this tamper-resistant outlet from adorne.
$12.25
Added to Favorites
Go to favorites
Remove from favorites?
Something went wrong. Please try again later.
ARCH152W10 | adorne Collection
Stay stylish and safe with this tamper-resistant outlet from adorne.
$11.39
Reviews
Rated 5 out of
5
by
Sean Summers from
Beautiful minimal outlets
These outlets were simple to install and fixed the problem I had of nine outlets on my backsplash that were too busy looking and ruined the look of my kitchen. They look beautiful and much less intrusive since the building code requires so many outlets. Everyone wants to know where I got them. I’m a big fan of LeGrand products. If I could afford it I would replace all of the outlets and switches in my house.
Date published: 2024-02-08
Rated 5 out of
5
by
Sean Summers from
Love these simple to install outlets
Beautiful minimal outlets that don’t stand out like the builder quality white plugs on my backsplash
Date published: 2024-02-08
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
Can these be installed without a wall plate?
Thank you for your inquiry. The adorne devices will require the subframe (included with wall plate purchase) and cosmetic wall plate to complete the installation.
Date published: 2024-08-11
What is the depth?
Thank you for your inquiry. Please review the following dimensional information for part number ARTR151W10:
H - 1.75"
W - 1.75"
D - 1.32"
Date published: 2024-09-09
Can this be installed in a stone/countertop splash?
Hello,
adorne outlets are designed for installation in standard electrical boxes. Please feel free to give us a call if you have any more questions.
Pass & Seymour Technical Support
Phone #: 800-223-4185
Monday - Friday | 8:00am - 6:00pm Eastern Standard Time (excluding holidays)
Best Regards,
Technical Support
Date published: 2023-11-30
Can this be installed with another outlet like one of these and another half size usb port but both on the same box and how would you connect
Hello Dylan,
A Half Size device can be installed with our Full-Size Outlets however, this combination will require the adorne Plus size wall plate.
Example:
Half Size - AANLM14
Full Size - ARTR151W10
Plus Size Wall Plate - AWP1G3WHW4
Please feel free to give us a call to discuss wiring specifications.
Phone:18449573783
Mon - Fri: 8am - 6pm EST (excluding holidays)
Email Us: tech.support@legrand.us
Best Regards,
Technical Support
Date published: 2023-05-19
