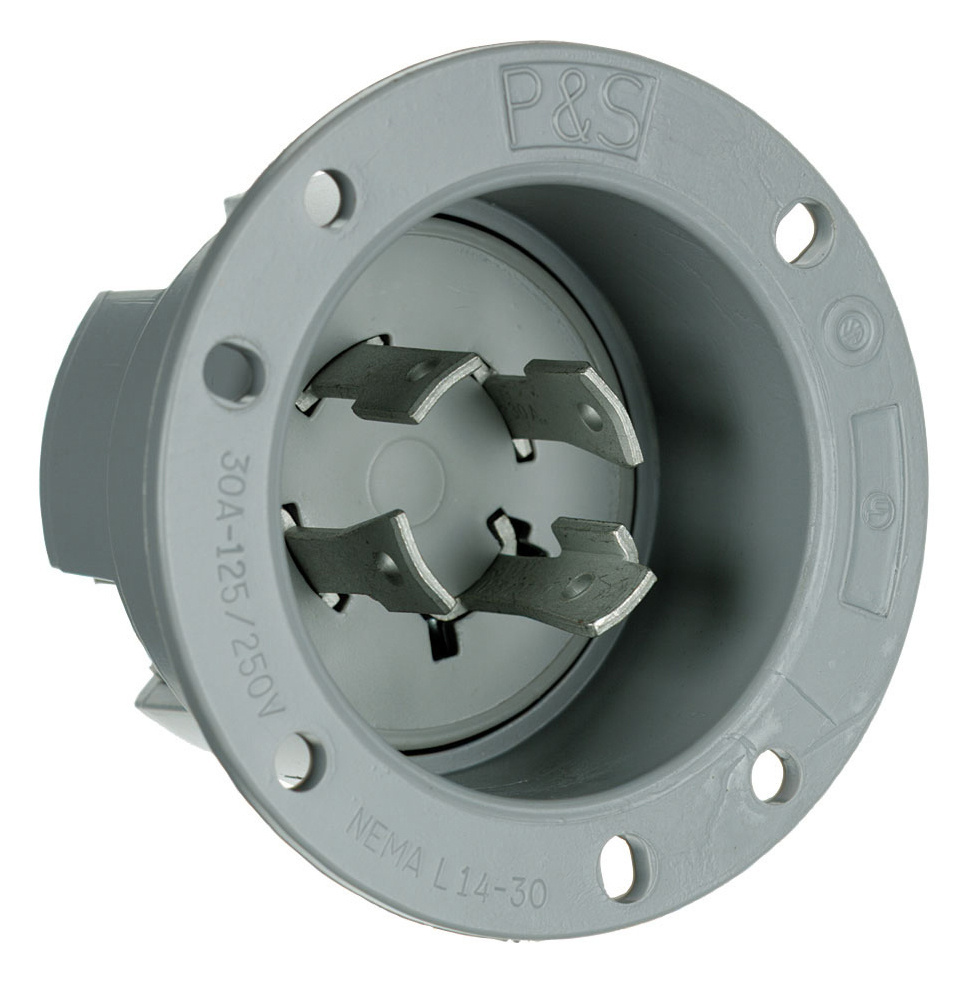

30A NEMA L1430 Flanged Inlet, Gray

L1430FI Pass and Seymour

Flanged Inlet 4-Wire 30A 125/250V Turnlok®

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Interior components constructed of high-grade brass material for physical and electrical integrity.
High-impact thermoplastic housing withstands on-the-job abuse.
Ratings and NEMA configurations are clearly visible on flange face, for fast I.D. while in use.

Specifications

General Info

Product Line	Pass & Seymour
Color	Gray
UPC Number	785007143027
Country Of Origin	Mexico
Application Sector	Industrial
Standard	UL 498

Dimensions

Product Width US	3.12 in
Product Depth US	1.75 in

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	146159
cULus Listed	Yes

Technical Information

Number of Wires	3
Amperage	30 A
Number of Poles	Double Pole
Wire Size	4

Resources

What size wires will 30A NEMA L1430 Flanged Inlet accept? Will 8AWG copper wire fit the connections or is 10 AWG or smaller needed?

Asked by: MSobie

Hello MSobie, The Nema L1430 Flanged Inlet will accept the following: Terminal Accommodation: #18 AWG min. – #8 AWG max. Best Regards, Technical Support

Answered by: Justin

Date published: 2023-06-15
