Non-NEMA 3-Wire Single Receptacle

7310 Pass and Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 40ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

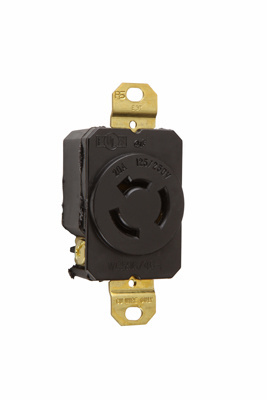

Turnlok® Receptacle 3-Pole 3-Wire 20A 125/250V
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
  • Face color coding by voltage facilitates locating and mating of proper devices.
  • One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
  • Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
  • Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
  • Side and external screw-pressure-plate back wire capability.
  • Accepts #14 - #10 AWG.
Specifications

Specifications

General Info
Product Line Pass & Seymour
UPC Number 785007731002
Country Of Origin Mexico
Application Sector Industrial
Standard UL 498, FEDSPEC
Dimensions
Product Width US 1.437 in
Product Depth US 0.97 in
Product Height US 2.25 in
Technical Information
Phase Three
Number of Wires 3
Amperage 20 A
Number of Poles 3-Way
Wire Size 18 - 0 AWG
Voltage 125.0 V
