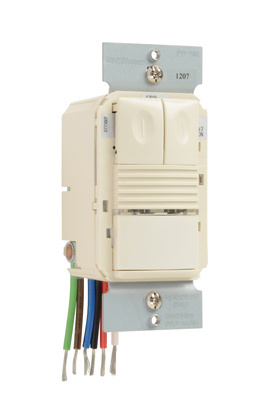

Discontinued - Commercial Bi-Level PIR Occupancy/Vacancy Sensor with Neutral, Light Almond

Bi-Level PIR Occupancy/Vacancy Sensor with Neutral, Major Coverage 35' x 30' Minor Coverage 20' x 15', Light Almond

Color Light Almond

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Choice of Auto-ON or Manual-ON operation, selectable for each relay. Auto adjustable time delays: automatic, fixed (5, 10, 15, 20, 25 or 30 minutes), walk-through, test-mode.
Selectable time delay automatically adjusts for maximum savings. Selectable walk-through mode turns lights off three minutes after the room is initially occupied if no motion is detected after the first 30 seconds.
Selectable test mode allows quick and easy adjustments. Selectable audible alert for impending shutoff.
In AUTO-ON mode, if the sensor is manually turned OFF, AUTO-ON will not enable until no motion is detected for 5 minutes. This prevents the light from turning ON when it was intended they remain OFF. Ideal for presentations.
LED indicates occupancy detection. Built-in light level sensing with simple, one-step setup. Override mode allows sensor to operate as a service switch in the unlikely event of a failure.
NEMA WD 7 guideline utilized for coverage testing. Sensitivity adjustment: PIR (high/low).
Coverage: 180 degrees, up to 1050 sq. ft.: major motion 35' x 30': minor motion 20' x 15'. cULus listed. 5-year warranty.
Requires Neutral
For covering patents, see www.legrand.us/patents.

General Info

Listing Agencies / 3rd Party Agencies

cULus Listed

Yes

Technical Information

Sensor Type

Occupancy, Vacancy
