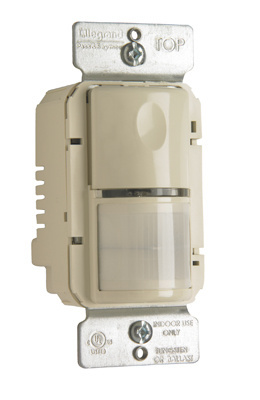

PlugTail® Commercial Passive Infrared (PIR) Wall Switch Sensor, Light Almond
PTWSP250LA
Pass & Seymour
Commercial Occupancy Sensor (PIR) PlugTail Automatic Wall Switch with 3 Wire Technology. Compact decorator design, shallow 1\'\' back body, positive detection indicator with no minimum load requirement. Available in Ivory, White, Gray and Light Almond. information, visit our PlugTail Headquarters.
In Stock
Added to Your Shopping Cart
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?
Features
- Detection Signature Analysis provides high immunity to RFI and EMI.
- Integrated light level sensor works from 10 to 150 footcandles.
- Compatible with all electronic and magnetic ballasts, PL lamp balasts, compact fluorescent.
- Adjustable time delay of 30 seconds to 30 minutes.
- Dual 120/277VAC operation, Adjustable sensitivity from 20% to 100%, 180 degree coverage of up to 900 sq. ft.
- Patented voltage drop protection and zero crossing circuitry.
- No exposed terminals create a fingersafe application before, during, and after installation.
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
- For covering patents, see www.legrand.us/patents. :
Specifications
General Info
| UPC Number | 785007017120 | ||
| Countries Of Origin | Mexico | ||
| Product Line | Pass & Seymour | ||
| Application Sector | Commercial/Industrial | ||
| Standard | CSA Listed, cULus, UL Listed |
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes |
Technical Information
| Sensitivity | 60Hz | ||
| Target Size | 180° | ||
| Sensing Range | 900 sq ft | ||
| Load | 120/277VAC | ||
| Response Frequency | 60 Hz | ||
| Environmental Conditions | Indoor Use Only |
