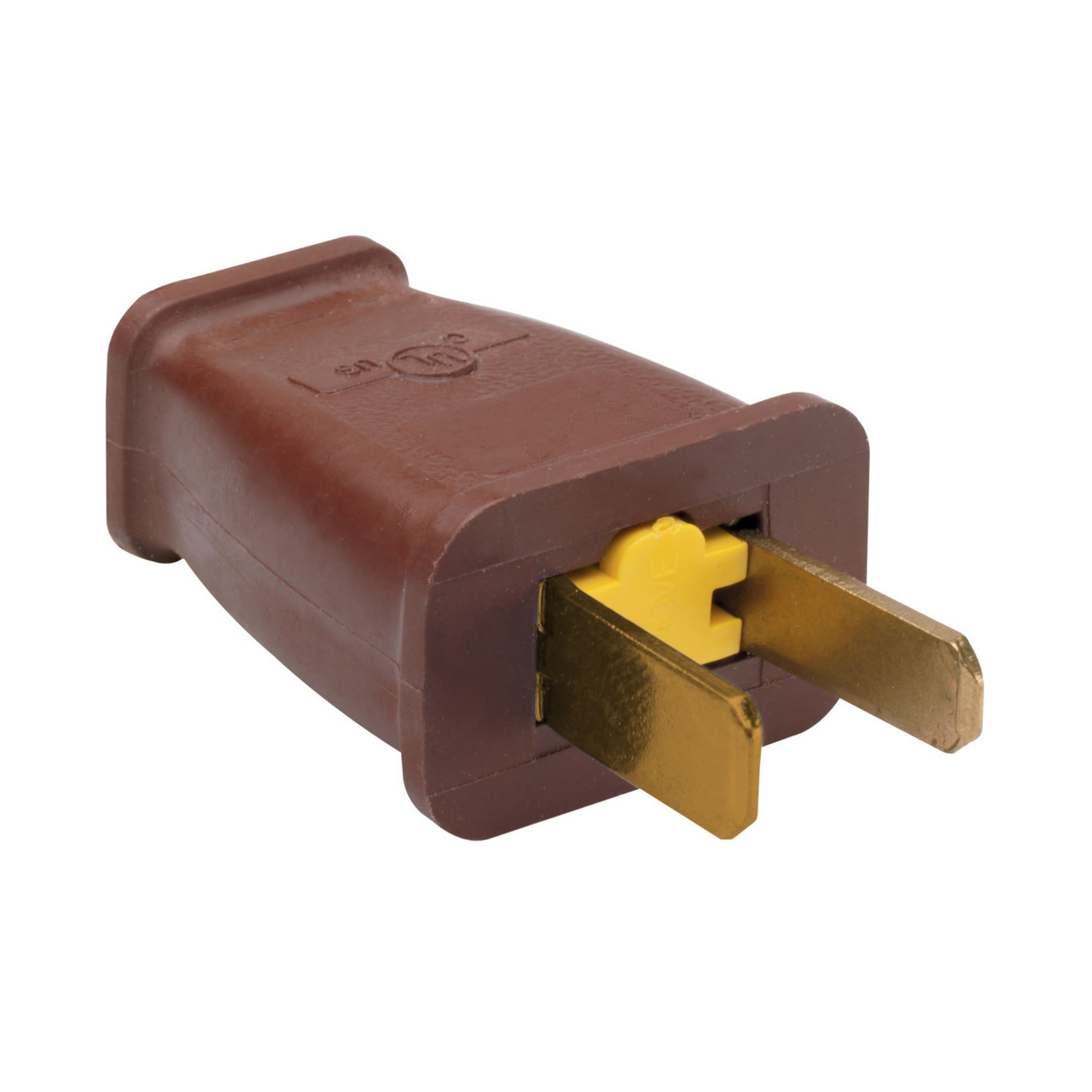

Double-Pole, Double Wire, Straight blade polarized plug. 15 A, 125 V.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Specifications
General Info
| Color | Brown | ||
| Product Line | Pass & Seymour | ||
| Country Of Origin | China | ||
| UPC Number | 785007863772 |
Resources
Cutsheet
Installation Instructions
Brochure
Specifications
Supporting Document
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
Please show video how to open/disassemble, and install/attach/assemble SA540 Polarized AC Plug. I tried attaching one, and couldn't get yellow "Remove" piece to fit back in place. It seems that once wires are attached, the blades won't fully seat.
Thank you for reaching out. Please feel free to contact Pass & Seymour Technical Support for wiring and installation support.
Pass & Seymour Technical Support
Phone #: 800-223-4185
Monday - Friday | 8:00 am - 6:00 pm Eastern Standard Time (excluding holidays)
Date published: 2025-01-07
How to you attach this to a cord. I've tried several ways and I can't insert the plug wedge,
Please see the attached instructions or contact Technical Support for assistance:
Pass & Seymour products
1.800.223-4185 opt 1
Mon - Fri: 8am - 6pm EST
(excluding holidays)
Email Us - tech.support@legrand.us
Date published: 2024-08-09
How are the wires connected inside? Screws? Vampire?
Internal screws, see attached
Date published: 2024-10-24
What does the back look like? (Where the cord goes in. Square? Round?
The plug is rated for use with 18/2 SPT, SV to 16/2 SJ round cord, .320" diameter max.
Date published: 2025-01-02
How do you open it to connect the wires
You could use a small flat blade screwdriver to gently push out the yellow insert from where the wires would enter the plug. Once it's apart, you could wire it up and then reassemble it.
Date published: 2023-02-03
