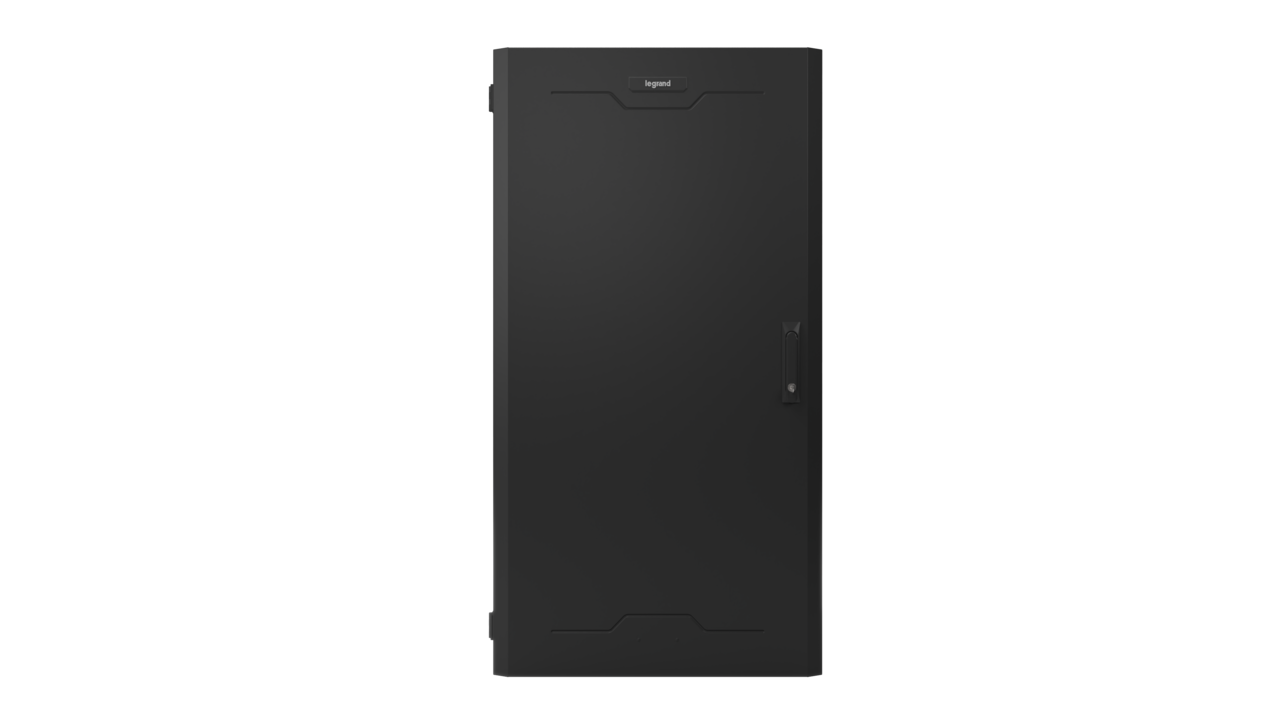

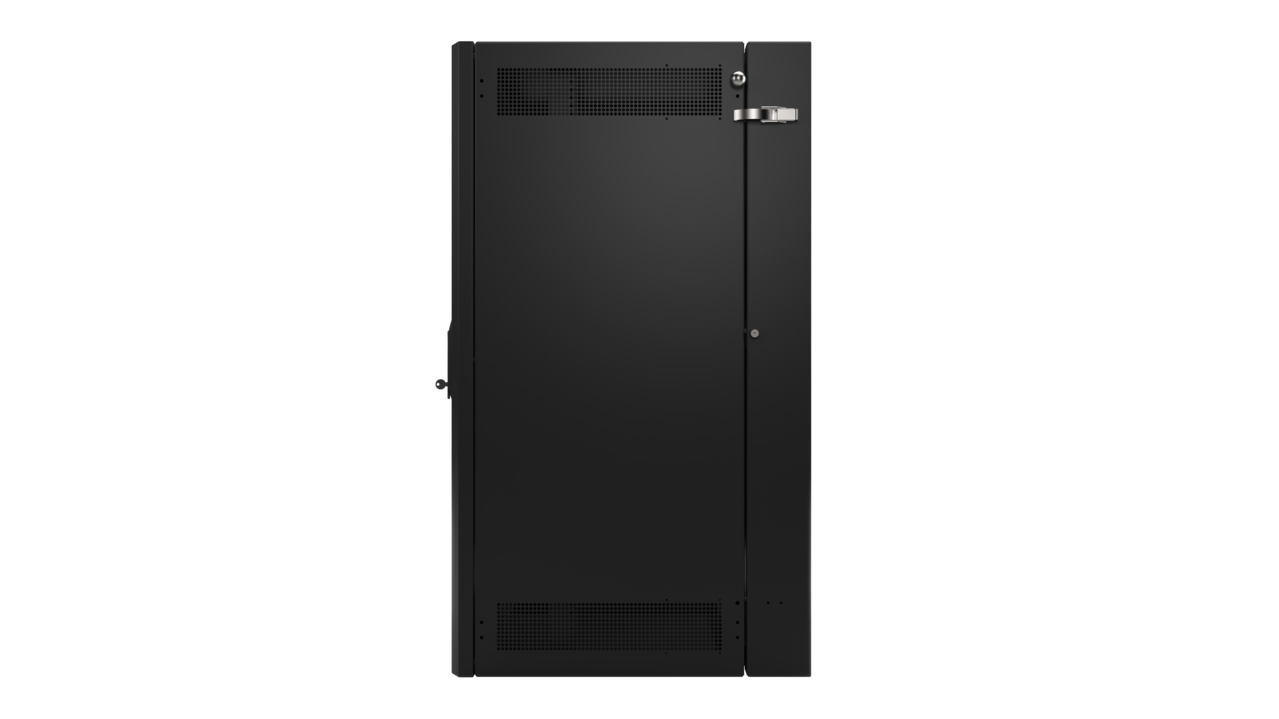

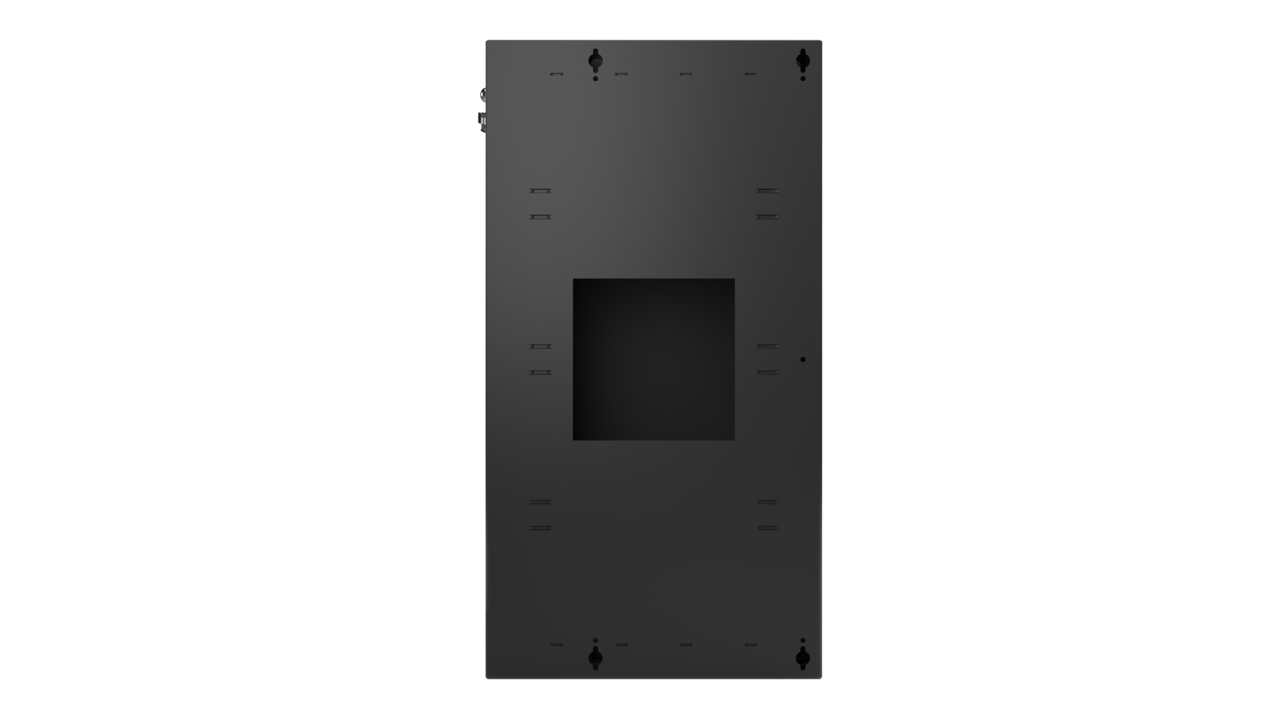

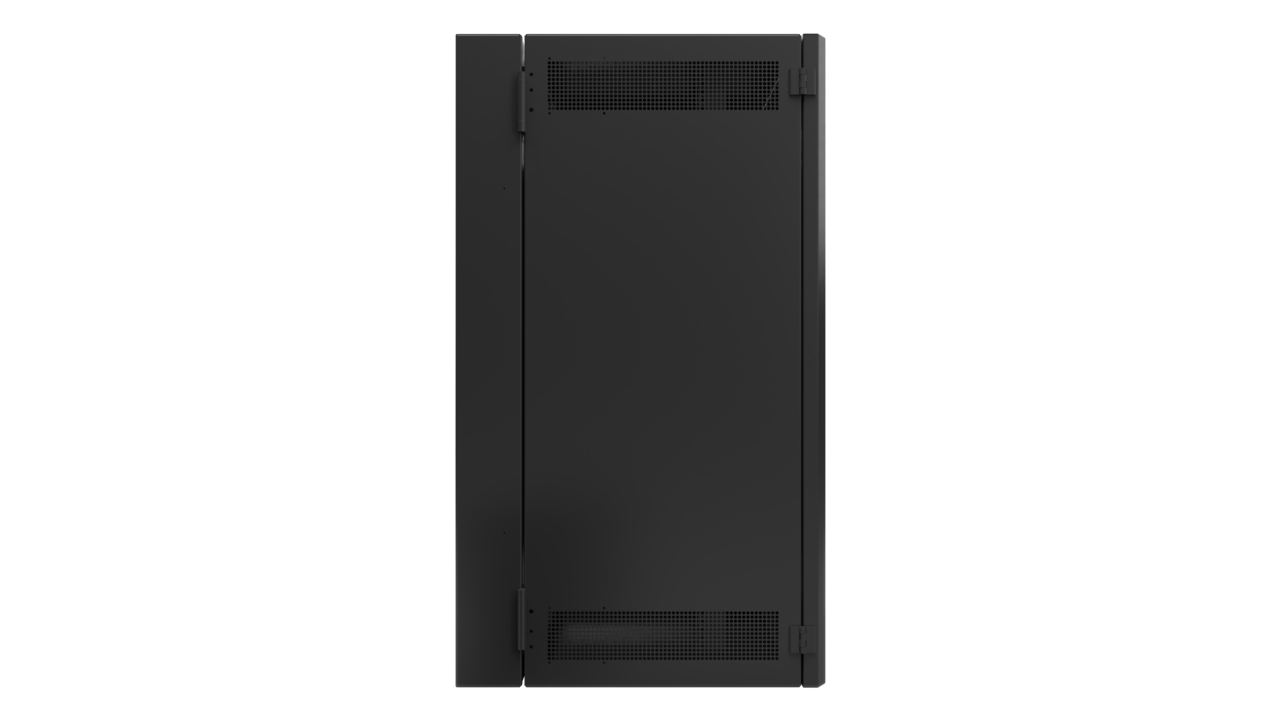

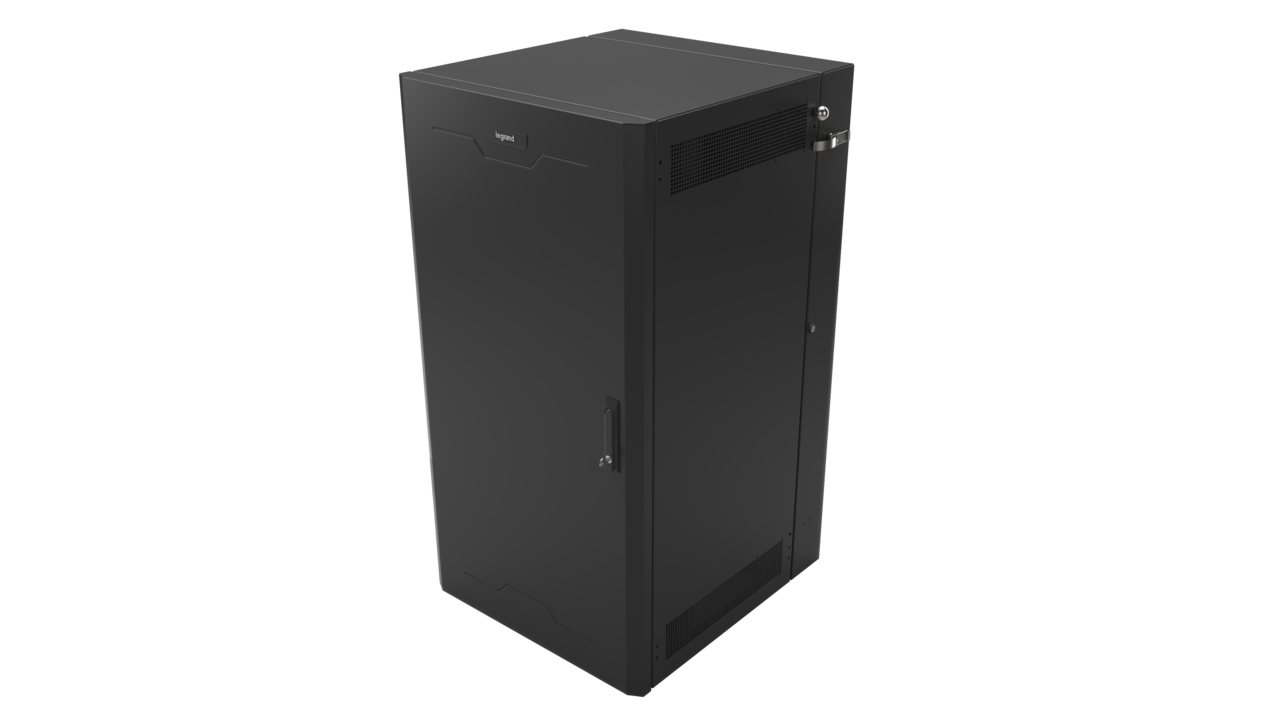

Swing-Out Wall-Mount Ruggedized Cabinets, 26RU, Solid Door
SWMR26RUSD-26-26
Ortronics
Bazaarvoice SAP Hybris Integration Version 2.8.1
The Swing-Out Wall-Mount Reinforced SWMR Series wall-mount cabinets provide a convenient and easy-to use solution for edge, IoT, PoE and small network applications. The small form factor cabinets are 28 in deep for medium to large network equipment. The cabinets are made of rugged
welded steel and feature locking doors. The SWMR series feature heavy duty latch and hinges to accommodate heavier weight loads.
Door Type
Solid Door
- Perforated Door
- Plexiglass Door
- Solid Door
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Cable knockouts at top and bottom of fixed rear pan
- UL2416 load rated
- PCI Compliant
- Reversible hinged solid front locking door
- Vented sides with mounting locations for optional cooling fans
- Reversible rails for network or server configurability
- 12-24 threaded and square punched mounting holes
- 2 reversible mounting rails
- 2 front door lock keys
- 8 cable management rings
- Ruggedized hinges and latches
- Multiple Heights available
Specifications
General Info
| Product Line | Ortronics | ||
| UPC Number | 662875032489 | ||
| Country Of Origin | Mexico |
Dimensions
| Product Width US | 26.0 in | ||
| Product Depth US | 26.0 in | ||
| Product Height US | 45.92 in |
Resources
Cutsheet
Customer Drawing No.
Submittal Sheet
Reviews
Bazaarvoice SAP Hybris Integration Version 2.8.1
Questions & Answers
is it available enclosure 12U, width 19", depth 500 mm., with 2 options din rail and 19" with DIN support rail? to install industrial switch on din rail, and 19-inch patch panel
We currently do not have the option you are requesting as a standard feature. We may be able to provide a custom solution on request.
Date published: 2024-01-09
