Discontinued - Ultrasonic Wall Switch Occupancy Sensor, 2-Button, 120/277V, Grey
UW-200-G
Wattstopper
Bazaarvoice SAP Hybris Integration Version 2.8.1
Replaced by DSW-302-G

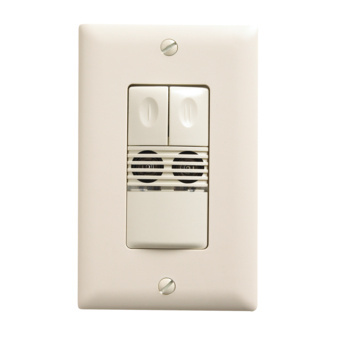

The UW-200 ultrasonic wall switch sensor turns lights ON and OFF based on occupancy. It contains two relays for controlling two independent lighting loads or circuits and a variety of features.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- High sensitivity for exceptional performance
- Two relays for control of two separate lighting loads or circuits
- Low profile design
- Selectable operation, walk-through, test and presentation modes for increased energy savings and convenience
- Defaults to Auto-ON to 50% operation for maximum energy savings
- Part of a comprehensive line of PIR, Ultrasonic and Dual Technology wall switch sensors
Specifications
General Info
| Color | Gray | ||
| Product Line | Wattstopper | ||
| Country Of Origin | China | ||
| Replaced by Part Number | DSW-302-G | ||
| UPC Number | 754182919529 |
Dimensions
| Product Depth US | 5.0 in | ||
| Product Height US | 2.5 in | ||
| Product Volume US | 40.62 cu in | ||
| Product Width US | 3.0 in | ||
| Product Weight US | 0.45 lb |
Additional Information
| Product Environmental Profile | Yes |
Technical Information
| Amperage | 4.3 A | ||
| Sensor Type | Occupancy | ||
| Sensor Technology | Ultrasonic | ||
| Wattage | 1200 W |
Resources
Installation Instructions
CAD Drawings
Specifications
Product Environmental Profile
